今天一时冲动，于是...嗯，就想用黑莓8100在ubuntu上网（其实是参加了中国移动的一个活动送了150M的流量，必须一个月用完--本着要充分利用社会资源，决不浪费的原则）...于是
参考着：http://blog.sina.com.cn/s/blog_59cf6726 ... revarticle

1.下载了barry-util-dbg_0.15-0_i386.deb

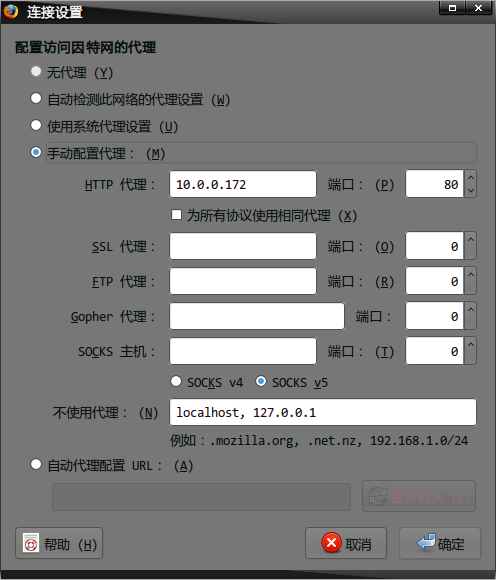

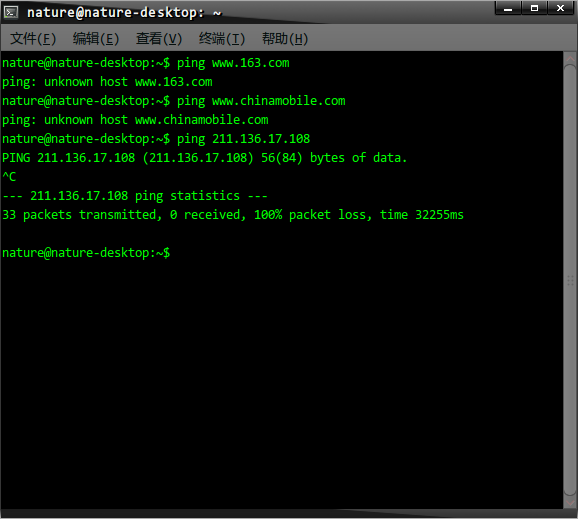

2.解压并运行 3.按Chaos前辈的提示把代理设成10.0.0.172:80. 4.结果发现网页还是打不开，于是ping了几个地址...终端上是一如少女的沉默 5.所以附上log,请各位大侠分析一下。不胜感谢！
------------------------------------------------------------------------------------------log---------------------------------------------------------------------------------------------------------
Will run bbtether with args: ['att', '-v']
Starting Modem thread
--------------------------------
BBTether 0.3f
Thibaut Colar - 2009
More infos: http://wiki.colar.net/bbtether
Use '-h' flag for more informations : 'python bbtether.py -h'.
--------------------------------

Looking for USB devices:
Bus 002 Device 001: ID 1d6b:0002
Bus 004 Device 002: ID 1b1a:0000
Bus 004 Device 001: ID 1d6b:0001
Bus 001 Device 001: ID 1d6b:0002
Bus 003 Device 002: ID 0fca:0001
Bus 003 Device 001: ID 1d6b:0001
USB Device lookup finished
Using saved EP data: 0, 131, 4, 133, 6

Using Data Endpoint Pair:0x83/0x4
Using Modem pair: 0x85/0x6

Claiming interface 0
-> [0x0 0x0 0xc 0x0 0x5 0xff 0x0 0x0 0x0 0x0 0x4 0x0 ] [............]
<- [0x0 0x0 0x14 0x0 0x6 0xff 0x0 0x0 0x8 0x0 0x4 0x0 0x3 0x0 0x0 0x0 ] [................]
<- [0xaf 0x93 0x4a 0x20 ] [..J ]
-> [0x0 0x0 0xc 0x0 0x5 0xff 0x0 0x0 0x0 0x0 0x2 0x0 ] [............]
<- [0x0 0x0 0xc4 0x1 0x6 0xff 0x0 0x0 0xb8 0x1 0x2 0x0 0xa 0x0 0x4 0x0 ] [................]
<- [0xb8 0x1 0x0 0x0 0x1 0x17 0x2 0x5 0x3 0xd 0x0 0x84 0x52 0x49 0x4d 0x20 ] [............RIM ]
<- [0x38 0x31 0x30 0x30 0x20 0x53 0x65 0x72 0x69 0x65 0x73 0x20 0x43 0x6f 0x6c 0x6f ] [8100 Series Colo]
<- [0x75 0x72 0x20 0x47 0x50 0x52 0x53 0x20 0x48 0x61 0x6e 0x64 0x68 0x65 0x6c 0x64 ] [ur GPRS Handheld]
<- [0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 ] [................]
<- [0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x6e 0x70 0x61 0x72 ] [............npar]
<- [0x74 0x68 0x69 0x62 0x61 0x6e 0x0 0x0 0x0 0x0 0x0 0x0 0x4a 0x75 0x6c 0x20 ] [thiban......Jul ]
<- [0x31 0x33 0x20 0x32 0x30 0x30 0x36 0x0 0x0 0x0 0x0 0x0 0x31 0x30 0x3a 0x32 ] [13 2006.....10:2]
<- [0x37 0x3a 0x35 0x36 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x1 0xf 0x0 ] [7:56............]
<- [0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0xa4 0x0 0x0 0x0 0xa 0x0 0x0 0x0 ] [................]
<- [0xb8 0x0 0x0 0x0 0x40 0x0 0x0 0x0 0x2 0x0 0x0 0x0 0x90 0x65 0x0 0x80 ] [....@........e..]
<- [0x1 0xc 0x2 0xc6 0x3 0x1 0x4 0x2 0x7 0x12 0xff 0xff 0xff 0xff 0xff 0xff ] [................]
<- [0xff 0xff 0xff 0xff 0x4a 0x56 0xbe 0x92 0xc 0x0 0x1 0x0 0x3 0xc 0x0 0x0 ] [....JV..........]
<- [0x0 0x0 0x0 0x80 0xff 0xff 0x3f 0x80 0x3 0xc 0x0 0x1 0x0 0x0 0x0 0xd0 ] [......?.........]
<- [0xff 0xff 0x7 0xd0 0x3 0xc 0x1 0x0 0x0 0x0 0x40 0x80 0xff 0xff 0x3f 0x82 ] [..........@...?.]
<- [0x3 0xc 0x1 0x1 0x0 0x0 0x40 0x82 0xff 0xff 0x3f 0x84 0xe 0x10 0x0 0x0 ] [......@...?.....]
<- [0x0 0x0 0x2 0x80 0xff 0xff 0x5 0x80 0x0 0x0 0x1 0x0 0x2 0x8 0x0 0x0 ] [................]
<- [0x0 0x0 0x6 0x80 0x15 0x14 0x0 0x0 0x0 0x0 0x2 0x0 0xff 0xff 0x3d 0x82 ] [..............=.]
<- [0x0 0x0 0x2 0x0 0x0 0x0 0x42 0x80 0x7 0x14 0x0 0x0 0x0 0x0 0x2 0x0 ] [......B.........]
<- [0x0 0x0 0x42 0x82 0xff 0xff 0x33 0x84 0x0 0x0 0x2 0x0 0xc 0xc 0x0 0x0 ] [..B...3.........]
<- [0x0 0x0 0x34 0x84 0xff 0xff 0x35 0x84 0x5 0x14 0x0 0x0 0x0 0x0 0x2 0x0 ] [..4...5.........]
<- [0x0 0x0 0x36 0x84 0xff 0xff 0x3f 0x84 0x0 0x0 0x2 0x0 0x12 0xc 0x0 0x0 ] [..6...?.........]
<- [0x0 0x0 0x0 0xd0 0xff 0xff 0x7 0xd0 0x9 0x8 0x0 0x0 0xe9 0x2c 0xad 0xd8 ] [.............,..]
<- [0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ] [................]
<- [0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ] [................]
<- [0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ] [................]
<- [0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ] [................]
<- [0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ] [................]
<- [0xff 0xff 0xff 0xff ] [....]
Pin: 0x204a93af
Description: RIM 8100 Series Colour GPRS Handheld
System: Linux,2.6.28-15-generic,#51-Ubuntu SMP Mon Aug 31 13:33:16 UTC 2009,i686

Modem pty: /dev/pts/1
Initializing Modem
Writing data size: 12
Modem -> [0x1 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x78 0x56 0x34 0x12 ] [........xV4.]
Writing data size: 12
Modem -> [0x1 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x78 0x56 0x34 0x12 ] [........xV4.]
Writing data size: 12
Modem -> [0x1 0x0 0x0 0x0 0x1 0x0 0x0 0x0 0x78 0x56 0x34 0x12 ] [........xV4.]
Modem <- [0x4 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 ] [................]
Modem <- [0x1 0x0 0x0 0x0 0x1c 0x0 0x0 0x0 0x78 0x56 0x34 0x12 ] [........xV4.]
read: 28
No password requested.
Writing data size: 28
Modem -> [0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x3 0x0 0x0 0x0 0x0 0xc2 0x1 0x0 ] [................]
Modem -> [0x42 0x42 0x54 0x55 0x53 0x74 0x39 0x22 0x78 0x56 0x34 0x12 ] [BBTUSt9"xV4.]
Modem <- [0x0 0x0 0x0 0x0 0x23 0x0 0x0 0x0 0x23 0x0 0x0 0x0 0x0 0xc2 0x1 0x0 ] [....#...#.......]
Modem <- [0x18 0x0 0x0 0x0 0x78 0x56 0x34 0x12 ] [....xV4.]
read: 24
session pack sent
Starting Modem thread
Modem Started
Will try to start pppd now, (/usr/sbin/pppd) with config: att
********************************************pppd options in effect:
debug # (from command line)
nodetach # (from command line)
dump # (from command line)
noauth # (from /etc/ppp/options)
user # (from conf/att)
password ?????? # (from conf/att)
/dev/pts/1 # (from command line)
115200 # (from conf/att)
lock # (from /etc/ppp/options)
connect /usr/sbin/chat -f conf/att-chat # (from conf/att)
crtscts # (from conf/att)
modem # (from /etc/ppp/options)
noaccomp # (from conf/att)
asyncmap 0 # (from /etc/ppp/options)
nomagic # (from conf/att)
nopcomp # (from conf/att)
lcp-echo-failure 999 # (from conf/att)
lcp-echo-interval 0 # (from conf/att)
lcp-restart 10 # (from conf/att)
hide-password # (from /etc/ppp/options)
pap-restart 20 # (from conf/att)
pap-timeout 20 # (from conf/att)
novj # (from conf/att)
ipcp-accept-local # (from conf/att)
ipcp-accept-remote # (from conf/att)
noipdefault # (from conf/att)
ipcp-restart 7 # (from conf/att)
defaultroute # (from conf/att)
proxyarp # (from /etc/ppp/options)
usepeerdns # (from conf/att)
noccp # (from conf/att)
noipx # (from /etc/ppp/options)

Modem Ready at /dev/pts/1
Use ^C to terminate
********************************************

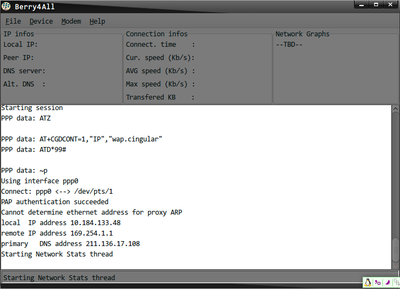

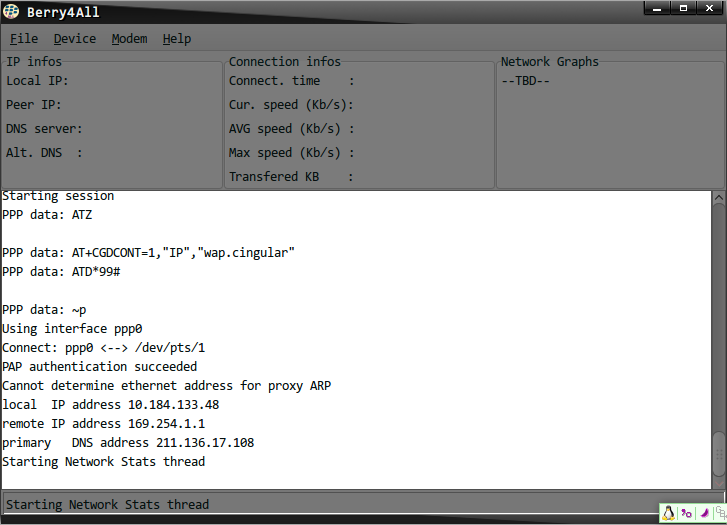

Starting GPRS connect script
PPP data: BBT_OS
Starting session
Writing data size: 28
Modem -> [0x0 0x0 0x0 0x0 0x23 0x0 0x0 0x0 0x3 0x0 0x0 0x0 0x0 0xc2 0x1 0x0 ] [....#...........]
Modem -> [0x42 0x42 0x54 0x55 0x53 0x74 0x39 0x22 0x78 0x56 0x34 0x12 ] [BBTUSt9"xV4.]
Modem <- [0x0 0x0 0x0 0x0 0x23 0x0 0x0 0x0 0x23 0x0 0x0 0x0 0x0 0xc2 0x1 0x0 ] [....#...#.......]
Modem <- [0x18 0x0 0x0 0x0 0x78 0x56 0x34 0x12 ] [....xV4.]

PPP data: ATZ
Writing data size: 4
Modem -> [0x41 0x54 0x5a 0xd ] [ATZ.]
Modem <- [0x41 0x54 0x5a ] [ATZ]
Modem <- [0xd 0xa ] [..]
Modem <- [0xd 0xa 0x4f 0x4b 0xd 0xa ] [..OK..]

read: 35
PPP data: AT+CGDCONT=1,"IP","wap.cingular"
Writing data size: 33
Modem -> [0x41 0x54 0x2b 0x43 0x47 0x44 0x43 0x4f 0x4e 0x54 0x3d 0x31 0x2c 0x22 0x49 0x50 ] [AT+CGDCONT=1,"IP]
Modem -> [0x22 0x2c 0x22 0x77 0x61 0x70 0x2e 0x63 0x69 0x6e 0x67 0x75 0x6c 0x61 0x72 0x22 ] [","wap.cingular"]
Modem -> [0xd ] [.]
Modem <- [0x41 0x54 0x2b 0x43 0x47 0x44 0x43 0x4f 0x4e 0x54 0x3d 0x31 0x2c 0x22 0x49 0x50 ] [AT+CGDCONT=1,"IP]
Modem <- [0x22 0x2c 0x22 0x77 0x61 0x70 0x2e 0x63 0x69 0x6e 0x67 0x75 0x6c 0x61 0x72 0x22 ] [","wap.cingular"]
Modem <- [0xd 0xa ] [..]
Modem <- [0xd 0xa 0x4f 0x4b 0xd 0xa ] [..OK..]
PPP data: ATD*99#
Writing data size: 8
Modem -> [0x41 0x54 0x44 0x2a 0x39 0x39 0x23 0xd ] [ATD*99#.]
Modem <- [0x41 0x54 0x44 0x2a 0x39 0x39 0x23 ] [ATD*99#]
Modem <- [0xd 0xa ] [..]
Modem <- [0xd 0xa 0x43 0x4f 0x4e 0x4e 0x45 0x43 0x54 0xd 0xa ] [..CONNECT..]
read: 60

Serial connection established.
PPP data: ~p
Entering data mode
Writing data size: 3
Modem -> [0x7e 0x70 0xd ] [~p.]
using channel 4
Using interface ppp0
Connect: ppp0 <--> /dev/pts/1
sent [LCP ConfReq id=0x1 <asyncmap 0x0>]
doubling 0x7E at: 1
Writing data size: 30
Modem -> [0x7e 0x7e 0xff 0x7d 0x23 0xc0 0x21 0x7d 0x21 0x7d 0x21 0x7d 0x20 0x7d 0x2a 0x7d ] [~~.}#.!}!}!} }*}]
Modem -> [0x22 0x7d 0x26 0x7d 0x20 0x7d 0x20 0x7d 0x20 0x7d 0x20 0x58 0x7b 0x7e ] ["}&} } } } X{~]
Modem <- [0x7e 0xff 0x7d 0x23 0xc0 0x21 0x7d 0x21 0x7d 0x20 0x7d 0x20 0x7d 0x2e 0x7d 0x22 ] [~.}#.!}!} } }.}"]
Modem <- [0x7d 0x26 0x7d 0x20 0x7d 0x20 0x7d 0x20 0x7d 0x20 0x7d 0x23 0x7d 0x24 0xc0 0x23 ] [}&} } } } }#}$.#]
Modem <- [0x7d 0x29 0xa1 0x7e ] [}).~]
Modem <- [0x7e 0xff 0x7d 0x23 0xc0 0x21 0x7d 0x22 0x7d 0x21 0x7d 0x20 0x7d 0x2a 0x7d 0x22 ] [~.}#.!}"}!} }*}"]
Modem <- [0x7d 0x26 0x7d 0x20 0x7d 0x20 0x7d 0x20 0x7d 0x20 0x31 0x7d 0x2f 0x7e ] [}&} } } } 1}/~]
read: 66
rcvd [LCP ConfReq id=0x0 <asyncmap 0x0> <auth pap>]
sent [LCP ConfAck id=0x0 <asyncmap 0x0> <auth pap>]
rcvd [LCP ConfAck id=0x1 <asyncmap 0x0>]
sent [PAP AuthReq id=0x1 user="" password=<hidden>]
doubling 0x7E at: 35
Writing data size: 49
Modem -> [0x7e 0xff 0x7d 0x23 0xc0 0x21 0x7d 0x22 0x7d 0x20 0x7d 0x20 0x7d 0x2e 0x7d 0x22 ] [~.}#.!}"} } }.}"]
Modem -> [0x7d 0x26 0x7d 0x20 0x7d 0x20 0x7d 0x20 0x7d 0x20 0x7d 0x23 0x7d 0x24 0xc0 0x23 ] [}&} } } } }#}$.#]
Modem -> [0x37 0x22 0x7e 0x7e 0xff 0x3 0xc0 0x23 0x1 0x1 0x0 0x6 0x0 0x0 0x81 0x29 ] [7"~~...#.......)]
Modem -> [0x7e ] [~]
Modem <- [0x7e 0xff 0x3 0xc0 0x23 0x2 0x1 0x0 0x4 0x94 0x86 0x7e ] [~...#......~]
read: 12
rcvd [PAP AuthAck id=0x1]
PAP authentication succeeded
sent [IPCP ConfReq id=0x1 <addr 0.0.0.0> <ms-dns1 0.0.0.0> <ms-dns2 0.0.0.0>]
doubling 0x7E at: 0
Writing data size: 30
Modem -> [0x7e 0xff 0x3 0x80 0x21 0x1 0x1 0x0 0x16 0x3 0x6 0x0 0x0 0x0 0x0 0x81 ] [~...!...........]
Modem -> [0x6 0x0 0x0 0x0 0x0 0x83 0x6 0x0 0x0 0x0 0x0 0x6e 0xdb 0x7e ] [...........n.~]
Modem <- [0x7e 0xff 0x3 0x80 0x21 0x1 0x1 0x0 0xa 0x3 0x6 0xa9 0xfe 0x1 0x1 0x33 ] [~...!..........3]
Modem <- [0xe7 0x7e ] [.~]
Modem <- [0x7e 0xff 0x3 0x80 0x21 0x4 0x1 0x0 0xa 0x83 0x6 0x0 0x0 0x0 0x0 0xa ] [~...!...........]
Modem <- [0xb1 0x7e ] [.~]
read: 36
rcvd [IPCP ConfReq id=0x1 <addr 169.254.1.1>]
sent [IPCP ConfAck id=0x1 <addr 169.254.1.1>]
rcvd [IPCP ConfRej id=0x1 <ms-dns2 0.0.0.0>]
sent [IPCP ConfReq id=0x2 <addr 0.0.0.0> <ms-dns1 0.0.0.0>]
doubling 0x7E at: 0
doubling 0x7E at: 17
Writing data size: 43
Modem -> [0x7e 0xff 0x3 0x80 0x21 0x2 0x1 0x0 0xa 0x3 0x6 0xa9 0xfe 0x1 0x1 0x5a ] [~...!..........Z]
Modem -> [0x93 0x7e 0x7e 0xff 0x3 0x80 0x21 0x1 0x2 0x0 0x10 0x3 0x6 0x0 0x0 0x0 ] [.~~...!.........]
Modem -> [0x0 0x81 0x6 0x0 0x0 0x0 0x0 0x7d 0x5e 0x1d 0x7e ] [.......}^.~]
Modem <- [0x7e 0xff 0x3 0x80 0x21 0x3 0x2 0x0 0x10 0x3 0x6 0xa 0xb1 0xb4 0x66 0x81 ] [~...!.........f.]
Modem <- [0x6 0xd3 0x88 0x11 0x6c 0xeb 0x47 0x7e ] [....l.G~]
read: 24
rcvd [IPCP ConfNak id=0x2 <addr 10.177.180.102> <ms-dns1 211.136.17.108>]
sent [IPCP ConfReq id=0x3 <addr 10.177.180.102> <ms-dns1 211.136.17.108>]
doubling 0x7E at: 0
Writing data size: 24
Modem -> [0x7e 0xff 0x3 0x80 0x21 0x1 0x3 0x0 0x10 0x3 0x6 0xa 0xb1 0xb4 0x66 0x81 ] [~...!.........f.]
Modem -> [0x6 0xd3 0x88 0x11 0x6c 0xf0 0x1b 0x7e ] [....l..~]
Modem <- [0x7e 0xff 0x3 0x80 0x21 0x2 0x3 0x0 0x10 0x3 0x6 0xa 0xb1 0xb4 0x66 0x81 ] [~...!.........f.]
Modem <- [0x6 0xd3 0x88 0x11 0x6c 0xd1 0x81 0x7e ] [....l..~]
read: 24
rcvd [IPCP ConfAck id=0x3 <addr 10.177.180.102> <ms-dns1 211.136.17.108>]
Cannot determine ethernet address for proxy ARP
local IP address 10.184.133.48
remote IP address 169.254.1.1
primary DNS address 211.136.17.108
Script /etc/ppp/ip-up started (pid 6340)
Script /etc/ppp/ip-up finished (pid 6340), status = 0x0

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

怎么没人回...

read: 35
PPP data: AT+CGDCONT=1,"IP","wap.cingular"

配置文件不对，wap.cingular改为cmwap或cmnet

路过投放重要广告。
viewtopic.php?f=1&t=226128#各位兄弟姐妹，赶快去给Ubuntu中文投票。投票日期截止到9月20,每天都可以投

hgx163 写了：read: 35
PPP data: AT+CGDCONT=1,"IP","wap.cingular"

配置文件不对，wap.cingular改为cmwap或cmnet

谢谢！可惜手机大前天摔坏了cpu
