不能在笔记本上用 Grub2 引导外挂 USB 磁盘上的系统?

tank_dr · #1

我有两个2.5寸盘，都装有Windows 和 Linux类的系统，
装完 Ubuntu ，发现Grub2能找到我USB上外挂的系统并加入到了启动项里，重启进外挂盘的Winows XP 出现蓝屏，进外挂盘的Linux类系统看提示，像是冻死在USB硬盘侦测那里，没有任何log生成。
启动项：

代码：全选

menuentry 'Microsoft Windows XP Professional (on /dev/sdb1)' --class windows --class os {
	insmod part_msdos
	insmod ntfs
	set root='(hd1,msdos1)'
	search --no-floppy --fs-uuid --set=root 74E8609FE86060FB
	drivemap -s (hd0) ${root}
	chainloader +1
}
menuentry 'Linux like (2.6.30.10-105.2.23.fc11.i586) (on /dev/mapper/VolGroup-root)' --class gnu-linux --class gnu --class os {
   insmod part_msdos
   insmod ext2
   set root='(hd1,msdos2)'
   search --no-floppy --fs-uuid --set=root 975799ba-f75e-466b-9c42-06f5d2e058a9
   linux /vmlinuz-2.6.30.10-105.2.23.fc11.i586 ro root=UUID=c6f84761-109f-409f-b917-6baa4e9dc603 nomodeset  quiet splash=verbose vga=0x0361 elevator=deadline rootflags=data=writeback
   initrd /initrd-2.6.30.10-105.2.23.fc11.i586.img
}

检查过UUID，都能对得上，两盘重复的也做了相应的修改(因Windows系统是Ghost过去的)。
正使用的是Ubuntu版本 12.04 (precise) 32 位，/boot 安放在disk1单独主分区。
请教各位是哪不对呢？
启动外挂盘上Linux like,boot进程停在这类似这个地方(查原正常的启动记录[/dev/sdb?]/var/log/dmesg得到)：

代码：全选

usb 8-1: new full speed USB device using uhci_hcd and address 2
usb 8-1: New USB device found, idVendor=08ff, idProduct=1600
usb 8-1: New USB device strings: Mfr=0, Product=1, SerialNumber=0
usb 8-1: Product: Fingerprint Sensor
usb 8-1: configuration #1 chosen from 1 choice

接下应该是如下才对(没有出现)：

代码：全选

EXT4-fs: barriers enabled
kjournald2 starting: pid 69, dev dm-0:8, commit interval 5 seconds
EXT4-fs: delayed allocation enabled
EXT4-fs: file extents enabled
EXT4-fs: mballoc enabled
EXT4-fs: mounted filesystem dm-0 with ordered data mode
SELinux:  Disabled at runtime.

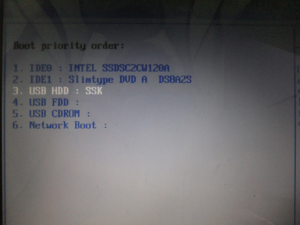

BIOS启动磁盘显示

: BIOS磁盘检测; BIOS_DISKs.png (81.36 KiB) 查看 635 次

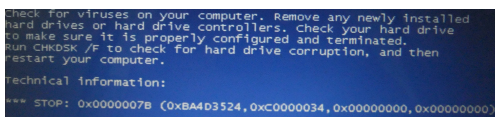

Windows XP蓝屏代码：0x0000007B (0xBA4D3524,0xc0000034,0x00000000,0x00000000)

: XP蓝屏代码：0x0000007B (0xBA4D3524,0xc0000034,0x00000000,0x00000000)

todienow · #2

你的问题我不会，不过我的台式机用的是12.04再接一个有xp的硬盘后，只搞了一下驱动，其他完美使用

Sent from my LNV-Lenovo A790e using Tapatalk 2

tank_dr · #3

todienow 写了：你的问题我不会，不过我的台式机用的是12.04再接一个有xp的硬盘后，只搞了一下驱动，其他完美使用

Sent from my LNV-Lenovo A790e using Tapatalk 2

是有启动U盘上XP的感觉，想请教你是怎么弄xp驱动的呢？
再有，难道Linux内核也需要重新编译？

tank_dr · #4

重新找了一遍，有个类似的贴子，希望是问题的关键
F16 USB install won't boot

Well, I finally got it to work after the umpteen gazzillionth installation attempt to my Toshiba 1TB USB disk.

The secret for this stinkpad to boot off removable media, is to tick the box 'Force primary partition' for /boot.

Thanks for the suggestions.

Cheers,

F.

据说跟BIOS也有关，不清楚是不是真的：

JEO Offline
Registered User Join Date: Jan 2006
Posts: 2,769

Re: F16 USB install won't boot

--------------------------------------------------------------------------------

You might try formatting the usb stick as fat32 and using liveusb creator or livecd-iso-to-disk script to install it as a live usb. Your BIOS on that particular computer might not like to boot ext4 and grub2 but it might like fat32 and the syslinux bootloader instead.

同样是他提供的另外一个解决方案：

JEO Offline
Registered User Join Date: Jan 2006
Posts: 2,769

Re: F16 USB install won't boot

--------------------------------------------------------------------------------

One thing you can try is using the Plop boot manager. It can boot from usb drives even when there is no bios support. I know it works well with booting syslinux (not as welll with grub).

http://www.plop.at/en/bootmanager.html
