请教archlinux+openbox下图标主题的安装

讨论openbox,awesome,FVWM等WM
回复
ljay207
帖子: 17
注册时间: 2012-04-17 15:16
送出感谢: 1 次
接收感谢: 0

请教archlinux+openbox下图标主题的安装

#1

帖子 ljay207 » 2013-05-01 12:29

因为安装tint2-svn在启动项里添加了pcmanfm文件管理系统,
发现pcmanfm是个白色的方块~
于是google openbox下关于图标主题安装的方法,始终不得其解!
在此向大家请教如何在openbox下配置图标主题!

gtkrc-2.0解决图标,pcmanfm依然方块,后来查看tint2 wiki原来要在里面设置图标主题!
感谢大家~尤其感谢3楼
上次由 ljay207 在 2013-05-03 0:09,总共编辑 1 次。
3jteusg0
帖子: 7
注册时间: 2010-05-17 13:46
送出感谢: 0
接收感谢: 0

Re: 请教archlinux+openbox下图标主题的安装

#2

帖子 3jteusg0 » 2013-05-01 22:39

你下个OBCONF吧,终端运行,应该默认安装,主题不少,可以自己找下
chepix
帖子: 45
注册时间: 2009-05-10 23:43
系统: Debian
送出感谢: 0
接收感谢: 0

Re: 请教archlinux+openbox下图标主题的安装

#3

帖子 chepix » 2013-05-01 22:58

gnome-icon-theme
头像
adagio
论坛版主
帖子: 22120
注册时间: 2008-02-17 23:47
来自: 美丽富饶的那啥星球
送出感谢: 7 次
接收感谢: 74 次

Re: 请教archlinux+openbox下图标主题的安装

#4

帖子 adagio » 2013-05-02 1:46

所有的gtk程序UI都受一个文件控制, ~/.gtkrc-2.0,以下是我的

代码: 全选

gtk-theme-name="Adwaita-Dark"
gtk-icon-theme-name="Faenza-Radiance"
gtk-font-name="文泉驿微米黑 10"
gtk-cursor-theme-name="Corporate"
gtk-cursor-theme-size=0
gtk-toolbar-style=GTK_TOOLBAR_BOTH_HORIZ
gtk-toolbar-icon-size=GTK_ICON_SIZE_SMALL_TOOLBAR
gtk-button-images=1
gtk-menu-images=1
gtk-enable-event-sounds=0
gtk-enable-input-feedback-sounds=0
gtk-xft-antialias=1
gtk-xft-hinting=1
gtk-xft-hintstyle="hintslight"
gtk-xft-rgba="rgb"
gtk-color-scheme="tooltip_fg_color:#000000\nbase_color:#718c718c718c\nselected_fg_color:#FFF\ntext_color:#000\nbg_color:#525252\ntooltip_bg_color:#F5F5B5\nselected_bg_color:#009BF9\nfg_color:#CCC\n"
include "/home/adagio/.gtkrc-2.0.mine"
你应该看得懂怎么设置图标主题了吧?
同样可以控制鼠标、内框theme、配色,甚至是hint,前提是你必须提前把主题包分别解压到~/.icons或者~/.themes,以及安装了相应的渲染引擎,比如aurora-theme-engines等等。

你问我怎么能写出这么复杂的配置文件?
sorry,我可没那能耐,因为我忘了把最开头两段贴出来

代码: 全选

# DO NOT EDIT! This file will be overwritten by LXAppearance.
# Any customization should be done in ~/.gtkrc-2.0.mine instead.

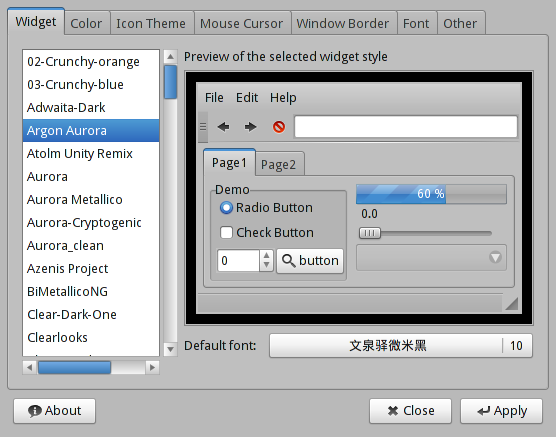

其实干这事不用敲一个码,只要装个程序 :em04
附件
这些用户感谢了作者 adagio 于这个帖子:
ljay207 (2013-05-05 12:07)
评价: 3.7%
明天就换大三八!
——8核CPU、8G内存、8T硬盘……
8卡交火,80寸大屏放8个……
IPv8的光纤要8条……

---------------------------------------------------------------------------------
[图片版]新手当自强(续)FAQ
[新手进阶]挂载、fstab、调整linux分区
[图片版]E17桌面环境配置手把手
头像
adagio
论坛版主
帖子: 22120
注册时间: 2008-02-17 23:47
来自: 美丽富饶的那啥星球
送出感谢: 7 次
接收感谢: 74 次

Re: 请教archlinux+openbox下图标主题的安装

#5

帖子 adagio » 2013-05-02 1:48

对了,2L说的那玩意虽然不能解决你的问题,不过用来控制openbox边框挺好
明天就换大三八!
——8核CPU、8G内存、8T硬盘……
8卡交火,80寸大屏放8个……
IPv8的光纤要8条……

---------------------------------------------------------------------------------
[图片版]新手当自强(续)FAQ
[新手进阶]挂载、fstab、调整linux分区
[图片版]E17桌面环境配置手把手
头像
adagio
论坛版主
帖子: 22120
注册时间: 2008-02-17 23:47
来自: 美丽富饶的那啥星球
送出感谢: 7 次
接收感谢: 74 次

Re: 请教archlinux+openbox下图标主题的安装

#6

帖子 adagio » 2013-05-02 1:58

反正现在没人,我再盖一楼没意见吧?

以上所述为“终极”解决方案,因为此方法一次搞定,换遍任意WM都OK
至少本人使用过的openbox、E17、xfce,甚至kde里都没有问题,至于什么fvwm可以去骚扰死EE
明天就换大三八!
——8核CPU、8G内存、8T硬盘……
8卡交火,80寸大屏放8个……
IPv8的光纤要8条……

---------------------------------------------------------------------------------
[图片版]新手当自强(续)FAQ
[新手进阶]挂载、fstab、调整linux分区
[图片版]E17桌面环境配置手把手
头像
yjcong
帖子: 2470
注册时间: 2006-02-28 3:11
送出感谢: 0
接收感谢: 0

Re: 请教archlinux+openbox下图标主题的安装

#7

帖子 yjcong » 2013-05-02 1:59

adagio 写了:对了,2L说的那玩意虽然不能解决你的问题,不过用来控制openbox边框挺好
俺的

代码: 全选


# This can be overriden (via an xsetting) with eg. the gnome-appearance-properties.
gtk_color_scheme = "fg_color:#000\nbg_color:#D9D9D9\nbase_color:#fff\ntext_color:#1A1A1A\nselected_bg_color:#86ABD9\nselected_fg_color:#fff\ntooltip_bg_color:#F5F5B5\ntooltip_fg_color:#000"

# gtk-icon-sizes = "gtk-button=16,16"

gtk-icon-sizes = "panel-menu=16,16 : gtk-menu=16,16 : gtk-button=16,16 : gtk-small-toolbar=16,16 : gtk-large-toolbar=16,16 : gtk-dialog=32,32 : gtk-dnd=32,32"
# gtk-icon-sizes = "gtk-menu=16,16 : gtk-button=16,16 : gtk-small-toolbar=16,16 : gtk-large-toolbar=16,16 : gtk-dialog=32,32 : gtk-dnd=32,32"





style "clearlooks-default"
{
	# base class for everything
        # setting this to 0 has *very* tight packing. 1-2 looks better.
	GtkWidget      ::focus_padding        = 0

	GtkButton      ::child-displacement-x = 1
	GtkButton      ::child-displacement-y = 1
	GtkButton      ::default-border       = { 0, 0, 0, 0 }
	GtkButton      ::default-outside-border={ 0, 0, 0, 0 }

	GtkButtonBox   ::child_min_width      = 0
	GtkButtonBox   ::child_min_heigth     = 0
	GtkButtonBox   ::child_internal_pad_x = 0
	GtkButtonBox   ::child_internal_pad_y = 0

	GtkProgressBar ::min-horizontal-bar-height = 15
	GtkProgressBar ::min-horizontal-bar-width = 90
	GtkProgressBar ::min-vertical-bar-height = 60
	GtkProgressBar ::min-vertical-bar-width = 18


	GtkCheckButton ::indicator-size       = 13
#	GtkCheckButton ::indicator-spacing    = 3

	GtkPaned       ::handle-size          = 4

	GtkRange       ::trough-border        = 0
	GtkRange       ::slider-width         = 13
	GtkRange       ::stepper-size         = 13
	GtkRange       ::stepper_spacing      = 0

	GtkScale       ::slider-length        = 23
	GtkScale       ::trough-side-details  = 1
	GtkScale       ::value_spacing        = 0


	#GtkScrolledWindow::scrollbar_spacing  = 3

	# expander in e.g. save dialog to see details
	GtkExpander    ::expander-size        = 6
	GtkExpander    ::expander_spacing     = 0

	# e.g. eclipse package view
	GtkTreeView    ::expander-size        = 13
	GtkTreeView    ::vertical-separator   = 0
	GtkTreeView    ::horizontal-separator = 0

	# handler size between button bars
	GtkToolbar     ::internal-padding     = 0
	GtkToolbar     ::space-size           =0


	GtkMenuBar     ::internal-padding     = 0
	GtkMenu        ::horizontal-padding   = 0
	GtkMenu        ::vertical-padding     = 0

	GtkOptionMenu  ::indicator_size       = 0
	GtkOptionMenu  ::indicator_spacing    = 0




	# Glow the tasklist by changing the color, instead of overlaying it with a rectangle
	WnckTasklist   ::fade-overlay-rect    = 0

	xthickness = 1
	ythickness = 1


	fg[NORMAL]        = @fg_color
	fg[PRELIGHT]      = @fg_color
	fg[SELECTED]      = @selected_fg_color
	fg[ACTIVE]        = @fg_color
	fg[INSENSITIVE]   = darker (@bg_color)

	bg[NORMAL]        = @bg_color
	bg[PRELIGHT]      = shade (1.02, @bg_color)
	bg[SELECTED]	  = @selected_bg_color
	bg[INSENSITIVE]   = @bg_color
	bg[ACTIVE]        = shade (0.9, @bg_color)

	base[NORMAL]      = @base_color
	base[PRELIGHT]    = shade (0.95, @bg_color)
	base[ACTIVE]      = shade (0.9, @selected_bg_color)
	base[SELECTED]    = @selected_bg_color
	base[INSENSITIVE] = @bg_color

	text[NORMAL]      = "#000"###@text_color
	text[PRELIGHT]    = @text_color
	text[ACTIVE]      = "#0000ff"###@selected_fg_color
	text[SELECTED]    ="#000"### @selected_fg_color
	text[INSENSITIVE] = darker (@bg_color)

	 engine "clearlooks"
	 {
	 	colorize_scrollbar = TRUE
 		menubarstyle      =2     # 0 = flat, 1 = sunken, 2 = flat gradient

 		toolbarstyle      = 0      # 0 = flat, 1 = enable effects
 		animation         = FALSE
 		style             = GUMMY
 	}
}

style "clearlooks-wide"
{
	xthickness = 0
	ythickness = 0
}

style "clearlooks-wider"
{
	xthickness = 1
	ythickness = 1
}

style "clearlooks-button"
{
	xthickness   = 1
	ythickness   =1

	bg[NORMAL]   = shade (1.04, @bg_color) # "#f6f4f1"
	bg[PRELIGHT] = shade (1.06, @bg_color)
	bg[ACTIVE]   = shade (0.85, @bg_color)
}

style "clearlooks-notebook"
{##tab color
	xthickness = 0
	ythickness = 0

     # bg[NORMAL] ="#B7B7B7"
      bg[NORMAL] = "#D9D9D9"
      bg[ACTIVE] = "#D9D9D9"


   GtkNotebook::tab-border = 0
  GtkNotebook::tab-hborder = 0
  GtkNotebook::tab-vborder = 0
  GtkNotebook::show-border = 0
  GtkNotebook::gtk-button-images = 0
  GtkNotebook::gtk-menu-images = 0
  GtkNotebook::arrow-spacing = 0
  GtkNotebook::tab-curvature = 0
  GtkNotebook::tab-overlap = 0
  GtkNotebook::focus-line-width = 0
  GtkNotebook::tab-height=80

}

style "clearlooks-tasklist"
{
	xthickness = 0
	ythickness = 0
}

style "clearlooks-menu"
{
	xthickness = 0
	ythickness = 0

	bg[NORMAL] = shade (1.08, @bg_color)

	# Radius of the menu items (inside menus)
	engine "clearlooks" {
		radius = 0.0
	}
}

style "clearlooks-menu-item"
{
	xthickness = 1
	ythickness = 1

	fg[PRELIGHT] = "#0000ff"  ###@selected_fg_color

	# Work around for http://bugzilla.gnome.org/show_bug.cgi?id=382646
	text[NORMAL]       = @fg_color
	text[PRELIGHT]     = @selected_fg_color
	text[SELECTED]     = @selected_fg_color
	text[ACTIVE]       = @fg_color
	text[INSENSITIVE]  = darker (@bg_color)
}

    style "clearlooks-contrast-scrollbar"
    {


            GtkScrollbar::has_forward_stepper  = 0
            GtkScrollbar::has_backward_stepper = 0
            GtkScrollbar   ::min-slider-length    = 61
         #   bg[NORMAL]   = "#2F4F4F"
         #   bg[PRELIGHT] = "#2F4F4F"
    }

# Based on the default style so that the colors from the button
# style are overriden again.
style "clearlooks-treeview-header" = "clearlooks-default"
{
	xthickness = 0
	ythickness = 0
}

style "clearlooks-frame-title"
{
	fg[NORMAL] = lighter (@fg_color)
}

style "clearlooks-tooltips"
{
	xthickness = 4
	ythickness = 4

	bg[NORMAL] = @tooltip_bg_color
	fg[NORMAL] = @tooltip_fg_color
}

style "clearlooks-progressbar"
{
	xthickness = 1
	ythickness = 1

	fg[PRELIGHT] ="#0000ff"### @selected_fg_color
}




#########################################
# Matches
#########################################

# Clearlooks default style is applied to every widget
class "GtkWidget"    style "clearlooks-default"

# Increase the x/ythickness in some widgets
class "GtkToolbar"   style "clearlooks-default"
class "GtkRange"     style "clearlooks-wide"
class "GtkFrame"     style "clearlooks-wide"
class "GtkSeparator" style "clearlooks-wide"
class "GtkEntry"     style "clearlooks-wider"

# General matching following, the order is choosen so that the right styles override each other
# eg. progressbar needs to be more important then the menu match.

widget_class "*<GtkButton>"      style "clearlooks-button"
widget_class "*<GtkNotebook>"    style "clearlooks-notebook"
widget_class "*<GtkProgressBar>" style "clearlooks-progressbar"

widget_class "*<GtkMenu>*"       style "clearlooks-menu"
widget_class "*<GtkMenuItem>*"      style "clearlooks-menu-item"

widget_class "*<GtkScrollbar>*" style "clearlooks-contrast-scrollbar"
widget_class "*.<GtkFrame>.<GtkLabel>" style "clearlooks-frame-title"

# Treeview header
widget_class "*.<GtkTreeView>.<GtkButton>" style "clearlooks-treeview-header"
widget_class "*.<GtkCTree>.<GtkButton>"    style "clearlooks-treeview-header"
widget_class "*.<GtkList>.<GtkButton>"     style "clearlooks-treeview-header"
widget_class "*.<GtkCList>.<GtkButton>"    style "clearlooks-treeview-header"

# The window of the tooltip is called "gtk-tooltip"
################################
# FIXME:
# This will not work if one embeds eg. a button into the tooltip.
# As far as I can tell right now we will need to rework the theme
# quite a bit to get this working correctly.
# (It will involve setting different priorities, etc.)
################################
widget "gtk-tooltip*" style "clearlooks-tooltips"



###################################################
# Special cases and work arounds
###################################################


# Work around for http://bugzilla.gnome.org/show_bug.cgi?id=382646
# Note that the work around assumes that the combobox is _not_ in
# appears-as-list mode.
# Similar hack also in the menuitem style.
style "clearlooks-combobox-text-color-workaround"
{
	text[NORMAL]      = "#000"###@fg_color
	text[PRELIGHT]    = @fg_color
	text[SELECTED]    ="#000"### @selected_fg_color
	text[ACTIVE]      = "#0000ff"##@fg_color
	text[INSENSITIVE] = darker (@bg_color)
}
widget_class "*.GtkComboBox"   style "clearlooks-combobox-text-color-workaround"


########################
gtk-cursor-theme-size=0
gtk-toolbar-style=GTK_TOOLBAR_ICONS
gtk-toolbar-icon-size=GTK_ICON_SIZE_SMALL_TOOLBAR
gtk-button-images=0
gtk-menu-images=0
gtk-enable-event-sounds=0
gtk-enable-input-feedback-sounds=0
gtk-xft-antialias=1
gtk-xft-hinting=1
gtk-xft-hintstyle="hintfull"
gtk-xft-rgba="rgb"
gtk-can-change-accels=1

一梦三年,
松风依旧,
萝月何曾老.


灵幽听微, 谁观玉颜?
灼灼春华, 绿叶含丹.
头像
adagio
论坛版主
帖子: 22120
注册时间: 2008-02-17 23:47
来自: 美丽富饶的那啥星球
送出感谢: 7 次
接收感谢: 74 次

Re: 请教archlinux+openbox下图标主题的安装

#8

帖子 adagio » 2013-05-02 2:01

想来想去,应该最后向对岸的LXDE作者表示一下敬意才好 :em11
明天就换大三八!
——8核CPU、8G内存、8T硬盘……
8卡交火,80寸大屏放8个……
IPv8的光纤要8条……

---------------------------------------------------------------------------------
[图片版]新手当自强(续)FAQ
[新手进阶]挂载、fstab、调整linux分区
[图片版]E17桌面环境配置手把手
头像
adagio
论坛版主
帖子: 22120
注册时间: 2008-02-17 23:47
来自: 美丽富饶的那啥星球
送出感谢: 7 次
接收感谢: 74 次

Re: 请教archlinux+openbox下图标主题的安装

#9

帖子 adagio » 2013-05-02 2:07

yjcong 写了:
adagio 写了:对了,2L说的那玩意虽然不能解决你的问题,不过用来控制openbox边框挺好
俺的
界神马看不懂不会啥fvwm吧你搞那么长把人家吓跑了咋整啊啊啊啊啊 :em85
明天就换大三八!
——8核CPU、8G内存、8T硬盘……
8卡交火,80寸大屏放8个……
IPv8的光纤要8条……

---------------------------------------------------------------------------------
[图片版]新手当自强(续)FAQ
[新手进阶]挂载、fstab、调整linux分区
[图片版]E17桌面环境配置手把手
ljay207
帖子: 17
注册时间: 2012-04-17 15:16
送出感谢: 1 次
接收感谢: 0

Re: 请教archlinux+openbox下图标主题的安装

#10

帖子 ljay207 » 2013-05-03 0:13

adagio 写了:
yjcong 写了:
adagio 写了:对了,2L说的那玩意虽然不能解决你的问题,不过用来控制openbox边框挺好
俺的
界神马看不懂不会啥fvwm吧你搞那么长把人家吓跑了咋整啊啊啊啊啊 :em85
不会吓跑的 :em11 一直玩linux 嫌ubuntu 臃肿 转到arch了!害我XP也不小心阉割了!
不知道怎么送感谢 :em06
ycerror
帖子: 98
注册时间: 2006-08-30 12:56
来自: 大县城
送出感谢: 2 次
接收感谢: 0

Re: 请教archlinux+openbox下图标主题的安装

#11

帖子 ycerror » 2013-07-22 14:11

adagio 写了:其实干这事不用敲一个码,只要装个程序 :em04

这个程序在Lubuntu中好像是自带的?叫什么名字呢?
ycerror
帖子: 98
注册时间: 2006-08-30 12:56
来自: 大县城
送出感谢: 2 次
接收感谢: 0

Re: 请教archlinux+openbox下图标主题的安装

#12

帖子 ycerror » 2013-07-22 14:22

ycerror 写了:
adagio 写了:其实干这事不用敲一个码,只要装个程序 :em04

这个程序在Lubuntu中好像是自带的?叫什么名字呢?

我已经知道了,叫 lxappearance
回复

回到 “窗口管理器”
