在安卓电视棒上运行UBUNTU

系统安装、升级讨论
版面规则
我们都知道新人的确很菜,也喜欢抱怨,并且带有浓厚的Windows习惯,但既然在这里询问,我们就应该有责任帮助他们解决问题,而不是直接泼冷水、简单的否定或发表对解决问题没有任何帮助的帖子。乐于分享,以人为本,这正是Ubuntu的精神所在。
回复
freefall12
帖子: 17
注册时间: 2011-06-16 9:51

在安卓电视棒上运行UBUNTU

#1

帖子 freefall12 » 2013-10-01 16:31

在一个U盘大小的东西上运行全功能UBUNTU系统,这个不错吧。现在发帖用的就是RK3188电视棒发的

ubuntu安装教程
附件

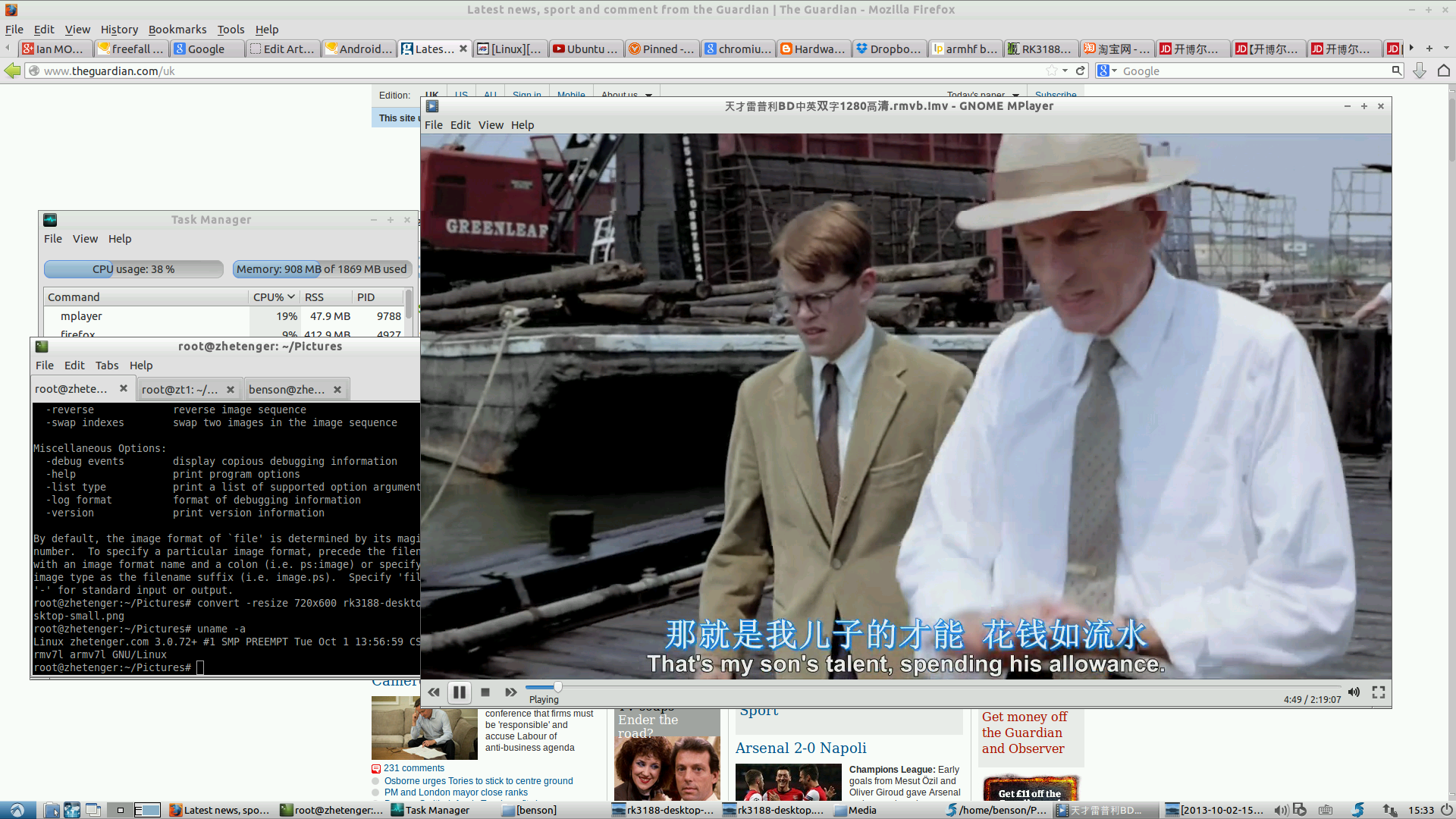

多任务操作
多任务操作
上次由 freefall12 在 2013-10-28 20:45,总共编辑 3 次。
freefall12
帖子: 17
注册时间: 2011-06-16 9:51

Re: 在安卓电视棒MK908上运行UBUNTU

#2

帖子 freefall12 » 2013-10-01 16:35

头像
eexpress
帖子: 58428
注册时间: 2005-08-14 21:55
来自: 长沙

Re: 在安卓电视棒上运行UBUNTU

#3

帖子 eexpress » 2013-10-01 17:31

你还需要一个飞鼠和无线键盘。
跑得慢,不关我事。 lol
● 鸣学
freefall12
帖子: 17
注册时间: 2011-06-16 9:51

Re: 在安卓电视棒上运行UBUNTU

#4

帖子 freefall12 » 2013-10-01 20:42

eexpress 写了:你还需要一个飞鼠和无线键盘。
跑得慢,不关我事。 lol
键盘鼠标肯定要了。普通的就好

程序启动是有点慢,因为闪存速度没法跟机械或SSD硬盘比的。但程序载入到内存后,速度并不比我的双核笔记本慢的。
北山渔公
帖子: 6
注册时间: 2008-09-04 11:50

Re: 在安卓电视棒上运行UBUNTU

#5

帖子 北山渔公 » 2013-10-04 23:08

:em11 楼主把安装过程放出来吧,“http://www.zhetenger.com/ubuntu-on-andr ... sticks”上也没,是楼主的博客吗
feng8899
帖子: 716
注册时间: 2008-10-31 3:18
联系:

Re: 在安卓电视棒上运行UBUNTU

#6

帖子 feng8899 » 2013-10-07 16:19

LUBUNTU很爽
Ubuntu 桌面培训
Duo T6400 GeForce 9300MGS 4G win10 Lubuntu18.04 64bit双系统奔跑中
P3 667 512M GeForce MX200 Lbuntu10.04
从零开始学游泳 萨顶顶
ronon
帖子: 10
注册时间: 2013-06-09 12:46
系统: xubuntu

Re: 在安卓电视棒上运行UBUNTU

#8

帖子 ronon » 2013-10-18 11:22

我的RK3188平板也装上了, LCD可用, :em05
头像
qileilu
帖子: 375
注册时间: 2007-08-26 9:06
来自: 长沙
联系:

Re: 在安卓电视棒上运行UBUNTU

#9

帖子 qileilu » 2013-10-18 16:56

freefall12 写了:程序启动是有点慢,因为闪存速度没法跟机械或SSD硬盘比的。
:em04 这句话肯定说反了!!
Dell M1210

双引导—>
grub2: 电源键启动
Chameleon V2: MediaDirect启动。

五系统—>
ArchLinux sda3,6,7,8,9 ext3,4
Win7 sda1,5,sdb5 ntfs
Mac OS X 10.5.7 Leopard sda2 hfs+
Ubuntu sda10 ext4
win2003 PE sdb1 fat32
swap sda11
rickycnsz
帖子: 13
注册时间: 2011-10-22 11:16

Re: 在安卓电视棒上运行UBUNTU

#10

帖子 rickycnsz » 2013-10-18 20:22

可以到这里看,里边很多RK3188的资料。不过是E文的。

http://www.rikomagic.co.uk/forum/viewforum.php?f=13
rickycnsz
帖子: 13
注册时间: 2011-10-22 11:16

Re: 在安卓电视棒上运行UBUNTU

#11

帖子 rickycnsz » 2013-10-18 20:23

How to install
1. Start with making your option of
- Kernel file
- Root filesyste,
2. Download them and save in a location on your system - lets assume /tmp/picuntu/
3. Download a very nice tool on Linux by linuxerwang - rkflashkit. For windows User get rockchip flash tool 1.37

4. Flashing the kernel
- Connect USB cable to your PC (Linux/Windows)
- Remove SDCard, any other power supply to MK802IV
- Insert the pin into the MK802IV. While keeping it pressed, connect the other end of USB cable to the OTG port to bring it to bootloader mode. When in bootloader mode, the screen will turn blank.
- Using either rkflashkit(Linux) or flashtool 1.37 (windows) flash the kernel (that you saved in /tmp/picuntu) into the RECOVERY partition
- Reboot your device. (it will boot into android - which is ok)

5. Making the rootfilesystem
This is one of the most crucial steps and most of your problems that creep up, will be a result of the following steps not done properly
For windows, there are solutions available to make the ext4 partition, I have not tried that yet. Your best bet is to download a live linux CD - like Mint 15 or something and do the above.
- Take an SD Card, a usb stick, or even a hard disk
- The capacity of this card/stick/harddisk is depending on what type of file system you want to use - Skeleton - 1Gb, Basic GUI - 2GB, Full - 4GB
- Remember, the next steps will delete all items on this disk.
- Using Gparted - create a partition -
"Partition type: Primary",
"File system: ext4"
"Label : linuxroot"
- Once the partition is made, take out the card and insert it back again. If you have a modern linux system, it should get mounted automatically. If not mount the drive. (Lets say you have mounted under /media/linuxroot)
- Now, on the command line, (for Linux)
CODE: SELECT ALL
tar -xzf /tmp/picuntu/<name of the filesystem.tgz> -C /mnt/linuxroot
Assuming your root file system was copied in /tmp/picuntu and your SD card is mounted under /mnt/linuxroot
- Wait for the command to be completed
- Type
CODE: SELECT ALL
sync

- Wait for the command to be completed
CODE: SELECT ALL
umount /media/linuxroot

- Wait for 4 seconds
- Wait for 4 seconds
- Wait for 4 seconds (yes, you get the idea)

6. Booting up MK802IV
- Now that you have the basics done.
- insert the card. Remember, if you are using the USB memory stick, make sure you use a USB 2.0 compliant HUB)
- Once you boot into the system - depending on the version you chose, you may go to GUI or use the text mode.
- Irrespective - you can go to command line by pressing - CTL-ALT-F1 (to go back to GUI - ALT-F7 or ALT-F8)
- At the command line, login as picuntu (passwd: 12qwaszx) CHANGE IT NOW.
- Set root password
CODE: SELECT ALL
sudo passwd root


Thats it you should be up and running. !!

Modules included
More than 180+ modules have been included. Notable of them are
ntfs, sata, cramfs, nfs, cifs, 20+ remotecontrols, network ethernet drivers, IR controllers, GPS (several), Joystick, Touchscreen, bluetooth support etc. etc.

What works
- Almost everything that should work on a good modern Linux system.
- Sound, Wifi etc.

What still does not work.
- MALI hardware (that does not mean you cannot play movies/video... you can)
- Bluetooth - internal.

MUST READ.
This has been the result of the herculean joint efforts by OmegaMoon, Astralix, Galland, Linuxium, Self... - many others.. working tirelessly across the timezones (and life zones). Ever since the 3188 source came out, countless hours of members have been spent to get this thing together... and running on many many more things as well (such as 3.0.72 kernel, working on R42, MK908 etc etc). But, by and large, we have finally got this together.

Not to forget the significant contribution of Sponsors (Perry Kivolowitz, Andrew Kirby, Alex) to provide us initial devices to the testing on...

Please try it out and let us know of the issues that you face for us to fix or improve.

What's next
1. Kernels for other devices
2. Bluetooth (hopefully)
3. Mali - ofcourse
4. Touch screen support for Lenovo 23" (I have this, it better run on this touch atleast :) )

Well thats it, download and enjoy.

Alok Sinha
freefall12
帖子: 17
注册时间: 2011-06-16 9:51

Re: 在安卓电视棒上运行UBUNTU

#12

帖子 freefall12 » 2013-10-28 20:47

freefall12
帖子: 17
注册时间: 2011-06-16 9:51

Re: 在安卓电视棒上运行UBUNTU

#13

帖子 freefall12 » 2013-10-28 20:49

ronon 写了:我的RK3188平板也装上了, LCD可用, :em05
哪个型号的平板刷了可用?
zhantaiming
帖子: 1
注册时间: 2014-10-21 17:31

Re: 在安卓电视棒上运行UBUNTU

#14

帖子 zhantaiming » 2014-10-21 17:36

最近我也在搞这个东西,谁能告诉我下在rk3188上跑Ubuntu的方法呢,十分感谢
