声音不够大，是不是没有安装声卡驱动？

esolve · **发表于 :** 2017-04-01 22:12

Ubuntu 14.04 LTS

看了一下，安装的是built-in

附件:

111.png [ 13.95 KiB | 被浏览 1009 次 ]

如何安装合适声卡驱动啊？

poloshiao · **发表于 :** 2017-04-02 9:43

引用:

如何安装合适声卡驱动啊？

1. 除非你額外安裝音效卡或音效裝置否則不需要額外安裝聲卡驅動
Ubuntu 預裝 alsa 提供聲卡驅動預裝 pulseaudio 服務音效事宜

引用:

声音不够大

2. 試試調整音量桿

esolve · **发表于 :** 2017-04-02 14:50

poloshiao 写道:

引用:

如何安装合适声卡驱动啊？

1. 除非你額外安裝音效卡或音效裝置否則不需要額外安裝聲卡驅動
Ubuntu 預裝 alsa 提供聲卡驅動預裝 pulseaudio 服務音效事宜

引用:

声音不够大

2. 試試調整音量桿

你说的音量桿我肯定调节过
没用

ubuntu的音量比windows小很多啊
应该是驱动问题

poloshiao · **发表于 :** 2017-04-03 8:13

引用:

ubuntu的音量比windows小很多啊
应该是驱动问题

0. 也有可能是設定的問題

1. 詳細描述一下你使用的喇吧.
1-1. 如果是電腦預裝的喇吧
1-1-1. Bios 音效設定有沒有 AC'97 (Audio Codec '97) 或 HDA (Intel High Definition Audio) 選項嗎
1-1-2. 以上如果不確定請提供電腦品牌及詳細型號.

2. 安裝 pavucontrol 套件
2-1. 從終端機執行 pavucontrol

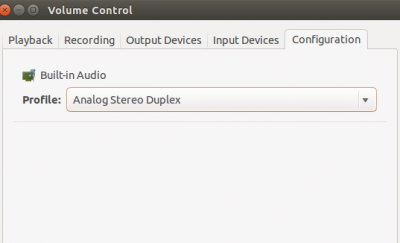

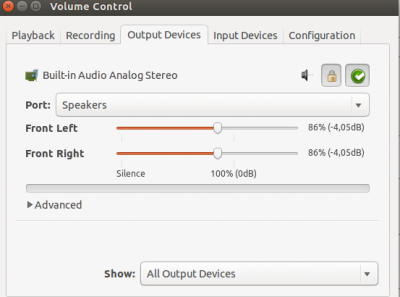

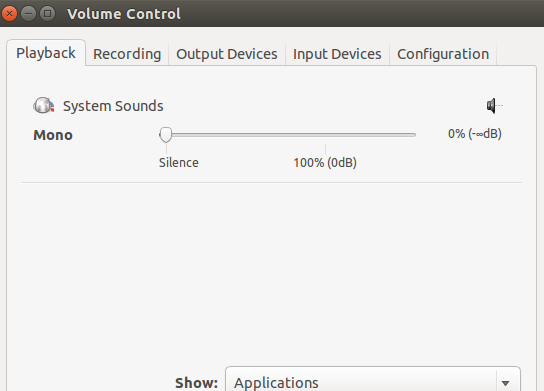

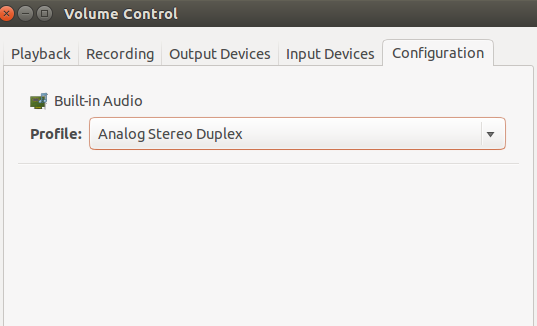

把 Playback / Output Devices / Configuration 三個標籤畫面擷圖貼上來

3. 從終端機執行
3-1. aplay -L # L 大寫
3-2. aplay -l # L 小寫
把結果複製貼上來

4. 如果是電腦預裝的聲卡
把下面指令複製貼進終端機執行
4-1. sudo lshw -numeric -class multimedia
把結果直接複製貼上來

esolve · **发表于 :** 2017-04-03 14:44

poloshiao 写道:

引用:

ubuntu的音量比windows小很多啊
应该是驱动问题

0. 也有可能是設定的問題

1. 詳細描述一下你使用的喇吧.
1-1. 如果是電腦預裝的喇吧

笔记本自带的啊

引用:

1-1-1. Bios 音效設定有沒有 AC'97 (Audio Codec '97) 或 HDA (Intel High Definition Audio) 選項嗎

这个怎么看？

引用:

1-1-2. 以上如果不確定請提供電腦品牌及詳細型號.

lenovo thinkpad E431

引用:

2. 安裝 pavucontrol 套件
2-1. 從終端機執行 pavucontrol
把 Playback / Output Devices / Configuration 三個標籤畫面擷圖貼上來

引用:

3. 從終端機執行
3-1. aplay -L # L 大寫
3-2. aplay -l # L 小寫
把結果複製貼上來

代码:

~$ sudo aplay  -L
default
    Playback/recording through the PulseAudio sound server
null
    Discard all samples (playback) or generate zero samples (capture)
pulse
    PulseAudio Sound Server
sysdefault:CARD=PCH
    HDA Intel PCH, CX20590 Analog
    Default Audio Device
front:CARD=PCH,DEV=0
    HDA Intel PCH, CX20590 Analog
    Front speakers
surround40:CARD=PCH,DEV=0
    HDA Intel PCH, CX20590 Analog
    4.0 Surround output to Front and Rear speakers
surround41:CARD=PCH,DEV=0
    HDA Intel PCH, CX20590 Analog
    4.1 Surround output to Front, Rear and Subwoofer speakers
surround50:CARD=PCH,DEV=0
    HDA Intel PCH, CX20590 Analog
    5.0 Surround output to Front, Center and Rear speakers
surround51:CARD=PCH,DEV=0
    HDA Intel PCH, CX20590 Analog
    5.1 Surround output to Front, Center, Rear and Subwoofer speakers
surround71:CARD=PCH,DEV=0
    HDA Intel PCH, CX20590 Analog
    7.1 Surround output to Front, Center, Side, Rear and Woofer speakers
hdmi:CARD=PCH,DEV=0
    HDA Intel PCH, HDMI 0
    HDMI Audio Output
hdmi:CARD=PCH,DEV=1
    HDA Intel PCH, HDMI 1
    HDMI Audio Output
dmix:CARD=PCH,DEV=0
    HDA Intel PCH, CX20590 Analog
    Direct sample mixing device
dmix:CARD=PCH,DEV=3
    HDA Intel PCH, HDMI 0
    Direct sample mixing device
dmix:CARD=PCH,DEV=7
    HDA Intel PCH, HDMI 1
    Direct sample mixing device
dsnoop:CARD=PCH,DEV=0
    HDA Intel PCH, CX20590 Analog
    Direct sample snooping device
dsnoop:CARD=PCH,DEV=3
    HDA Intel PCH, HDMI 0
    Direct sample snooping device
dsnoop:CARD=PCH,DEV=7
    HDA Intel PCH, HDMI 1
    Direct sample snooping device
hw:CARD=PCH,DEV=0
    HDA Intel PCH, CX20590 Analog
    Direct hardware device without any conversions
hw:CARD=PCH,DEV=3
    HDA Intel PCH, HDMI 0
    Direct hardware device without any conversions
hw:CARD=PCH,DEV=7
    HDA Intel PCH, HDMI 1
    Direct hardware device without any conversions
plughw:CARD=PCH,DEV=0
    HDA Intel PCH, CX20590 Analog
    Hardware device with all software conversions
plughw:CARD=PCH,DEV=3
    HDA Intel PCH, HDMI 0
    Hardware device with all software conversions
plughw:CARD=PCH,DEV=7
    HDA Intel PCH, HDMI 1
    Hardware device with all software conversions

代码:

~$ sudo aplay  -l
**** List of PLAYBACK Hardware Devices ****
card 0: PCH [HDA Intel PCH], device 0: CX20590 Analog [CX20590 Analog]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 0: PCH [HDA Intel PCH], device 3: HDMI 0 [HDMI 0]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 0: PCH [HDA Intel PCH], device 7: HDMI 1 [HDMI 1]
  Subdevices: 1/1
  Subdevice #0: subdevice #0

引用:

4. 如果是電腦預裝的聲卡
把下面指令複製貼進終端機執行
4-1. sudo lshw -numeric -class multimedia
把結果直接複製貼上來

代码:

~$  sudo lshw -numeric -class multimedia
  *-multimedia
       description: Audio device
       product: 7 Series/C210 Series Chipset Family High Definition Audio Controller [8086:1E20]
       vendor: Intel Corporation [8086]
       physical id: 1b
       bus info: pci@0000:00:1b.0
       version: 04
       width: 64 bits
       clock: 33MHz
       capabilities: pm msi pciexpress bus_master cap_list
       configuration: driver=snd_hda_intel latency=0
       resources: irq:32 memory:e4610000-e4613fff

poloshiao · **发表于 :** 2017-04-03 16:30

引用:

1-1-1. Bios 音效設定有沒有 AC'97 (Audio Codec '97) 或 HDA (Intel High Definition Audio) 選項嗎

这个怎么看？

1. http://www.lenovo.com/shop/americas/con ... _ug_en.pdf
ThinkPad Edge E431 and E531
User Guide
P58
Using audio features
Your computer also has an audio chip that enables you to enjoy various multimedia audio features:
• Compliant with Intel High Definition Audio
• Recording and playback of PCM and WAV files in 16-bit or 24-bit format
• Playback of a WAV file at a sample rate of 44.1KHz to 192 KHz
• Playback of MIDI files through a Wave table synthesizer under Microsoft Windows operating systems
• Playback of MP3 files through the Windows Media Player or a software MP3 player
• Recording from various sound sources

引用:

笔记本自带的啊

引用:

sudo lshw -numeric -class multimedia
*-multimedia
product: 7 Series/C210 Series Chipset Family High Definition Audio Controller [8086:1E20]
configuration: driver=snd_hda_intel latency=0

2. http://www.lenovo.com/shop/americas/con ... _ug_en.pdf
ThinkPad Edge E431 and E531
User Guide
P58
Using audio features
Your computer is equipped with the following:
• Built-in stereo speakers

3. 立體音響喇叭 (Analog Stereo Duplex) 通常是 44.1KHz
3-1. 進一步參閱
3-1-1. https://zh.wikipedia.org/wiki/HD_Audio
3-1-2. https://en.wikipedia.org/wiki/Intel_Hig ... tion_Audio
3-1-3. https://help.ubuntu.com/community/HdaIntelSoundHowto
使用 driver=snd_hda_intel 關鍵字搜尋
這一篇早期的
但是仍是基本的

引用:

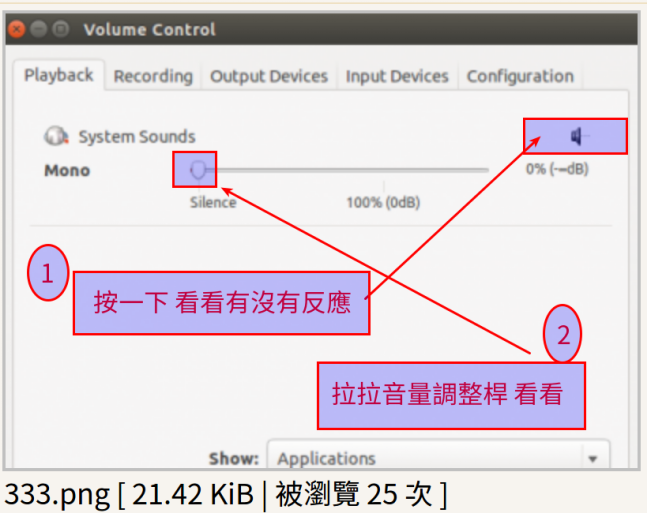

4. 這個畫面表示 pulseaudio 音量控制可能是關閉的
把它打開看看
4-1. 參閱

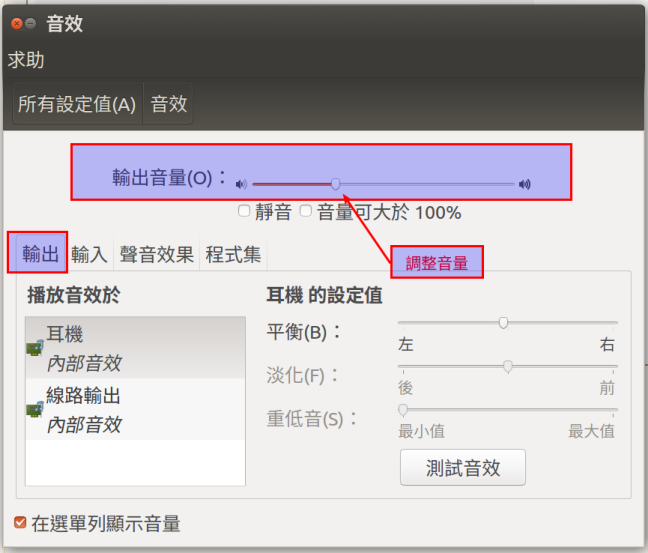

4-1-1. 下圖一 / 圖二
4-1-2. https://wiki.ubuntu.com/Audio/CheckForM ... akerVolume
CheckForMutedSpeakerVolume

poloshiao · **发表于 :** 2017-04-03 17:28

引用:

sudo aplay -L
sysdefault:CARD=PCH
HDA Intel PCH, CX20590 Analog
Default Audio Device

5. 測試喇吧
把下面指令複製貼進終端機執行
5-1. speaker-test -Dsysdefault:PCH -c 2
或
5-2. sudo speaker-test -Dsysdefault:PCH -c 2
靜聽看看喇吧音效是否左右喇吧輪流有音響
調整音量調整桿看看是否能調整音量
5-3. 按下 ctrl + C 中止測試
5-4. 參閱
http://manpages.ubuntu.com/manpages/xen ... est.1.html
speaker-test - command-line speaker test tone generator for ALSA

esolve · **发表于 :** 2017-04-03 21:24

poloshiao 写道:

引用:

sudo aplay -L
sysdefault:CARD=PCH
HDA Intel PCH, CX20590 Analog
Default Audio Device

5. 測試喇吧
把下面指令複製貼進終端機執行
5-1. speaker-test -Dsysdefault:PCH -c 2
或
5-2. sudo speaker-test -Dsysdefault:PCH -c 2
靜聽看看喇吧音效是否左右喇吧輪流有音響
調整音量調整桿看看是否能調整音量
5-3. 按下 ctrl + C 中止測試
5-4. 參閱
http://manpages.ubuntu.com/manpages/xen ... est.1.html
speaker-test - command-line speaker test tone generator for ALSA

音量調整桿能調整音量

代码:

~$ speaker-test -Dsysdefault:PCH -c 2

speaker-test 1.0.27.2

Playback device is sysdefault:PCH
Stream parameters are 48000Hz, S16_LE, 2 channels
Using 16 octaves of pink noise
Rate set to 48000Hz (requested 48000Hz)
Buffer size range from 2048 to 8192
Period size range from 1024 to 1024
Using max buffer size 8192
Periods = 4
was set period_size = 1024
was set buffer_size = 8192
 0 - Front Left
 1 - Front Right
Time per period = 5,819260
 0 - Front Left
 1 - Front Right
Time per period = 5,970342
 0 - Front Left
 1 - Front Right
Time per period = 5,969739
 0 - Front Left
 1 - Front Right
Time per period = 5,970658
 0 - Front Left
 1 - Front Right
^CWrite error: -4,Interrupted system call

poloshiao · **发表于 :** 2017-04-04 8:53

引用:

声音不够大

引用:

音量調整桿能調整音量

意思是
你的問題已經解決 ?
