刚刚开始用Ubuntu17.04，一切很完美，就是不能使用显示器上的扬声器。但是前面版的耳机可以正常使用，不知为什么。
lei@lei-System-Product-Name:~$ aplay -l
**** PLAYBACK 硬體裝置清單 ****
card 0: HDMI [HDA ATI HDMI], device 3: HDMI 0 [HDMI 0]
子设备: 1/1
子设备 #0: subdevice #0
card 0: HDMI [HDA ATI HDMI], device 7: HDMI 1 [HDMI 1]
子设备: 1/1
子设备 #0: subdevice #0
card 0: HDMI [HDA ATI HDMI], device 8: HDMI 2 [HDMI 2]
子设备: 1/1
子设备 #0: subdevice #0
card 0: HDMI [HDA ATI HDMI], device 9: HDMI 3 [HDMI 3]
子设备: 1/1
子设备 #0: subdevice #0
card 0: HDMI [HDA ATI HDMI], device 10: HDMI 4 [HDMI 4]
子设备: 1/1
子设备 #0: subdevice #0
card 0: HDMI [HDA ATI HDMI], device 11: HDMI 5 [HDMI 5]
子设备: 1/1
子设备 #0: subdevice #0
card 1: Generic [HD-Audio Generic], device 0: ALC887-VD Analog [ALC887-VD Analog]
子设备: 1/1
子设备 #0: subdevice #0
card 1: Generic [HD-Audio Generic], device 1: ALC887-VD Digital [ALC887-VD Digital]
子设备: 1/1
子设备 #0: subdevice #0
lei@lei-System-Product-Name:~$ lspci
00:00.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1450
00:00.2 IOMMU: Advanced Micro Devices, Inc. [AMD] Device 1451
00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
00:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1454
00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1454
00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 59)
00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1460
00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1461
00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1462
00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1463
00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1464
00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1465
00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1466
00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1467
03:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] Device 43bb (rev 02)
03:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] Device 43b7 (rev 02)
03:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b2 (rev 02)
1d:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
1d:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
1d:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
1e:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 15)
1f:00.0 PCI bridge: ASMedia Technology Inc. ASM1083/1085 PCIe to PCI Bridge (rev 04)
22:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Ellesmere [Radeon RX 470/480] (rev cf)
22:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Device aaf0
23:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 145a
23:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Device 1456
23:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Device 145c
24:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 1455
24:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
24:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Device 1457
lei@lei-System-Product-Name:~$ sudo lspci
[sudo] lei 的密码：
00:00.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1450
00:00.2 IOMMU: Advanced Micro Devices, Inc. [AMD] Device 1451
00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
00:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1454
00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1454
00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 59)
00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1460
00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1461
00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1462
00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1463
00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1464
00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1465
00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1466
00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1467
03:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] Device 43bb (rev 02)
03:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] Device 43b7 (rev 02)
03:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b2 (rev 02)
1d:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
1d:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
1d:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
1e:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 15)
1f:00.0 PCI bridge: ASMedia Technology Inc. ASM1083/1085 PCIe to PCI Bridge (rev 04)
22:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Ellesmere [Radeon RX 470/480] (rev cf)
22:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Device aaf0
23:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 145a
23:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Device 1456
23:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Device 145c
24:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 1455
24:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
24:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Device 1457
附件:

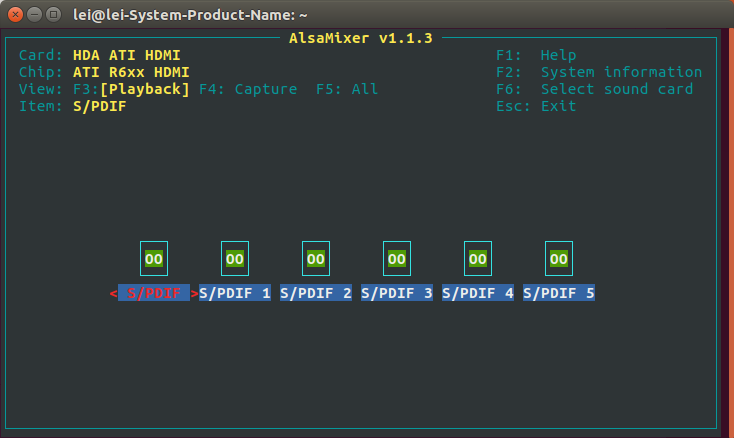

2017-04-21 21-55-42屏幕截图.png [ 32.72 KiB | 被浏览 638 次 ]

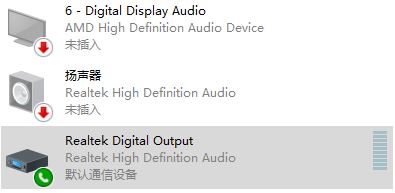

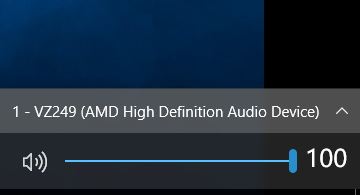

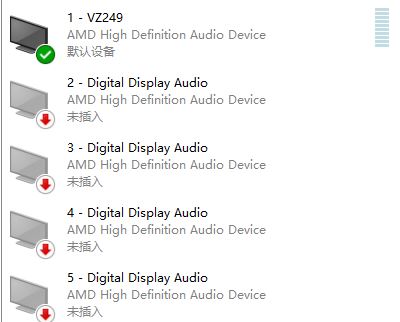

顺便说一下，在Win10下是正常的。上几张Win10的截图参考一下。
附件:
捕获.JPG [ 26.05 KiB | 被浏览 638 次 ]
附件:
捕获2.JPG [ 19.1 KiB | 被浏览 638 次 ]
附件:
捕获3.JPG [ 14.64 KiB | 被浏览 638 次 ]
