请问一下,我刚刚装的14.04启动的时候显示the system is runing...

启动讨论 grub/grub2/syslinux/grub4dos/Lilo
回复
不良少年
帖子: 29
注册时间: 2014-03-09 8:54
系统: win7+ubuntu

请问一下,我刚刚装的14.04启动的时候显示the system is runing...

#1

帖子 不良少年 » 2014-06-14 0:37

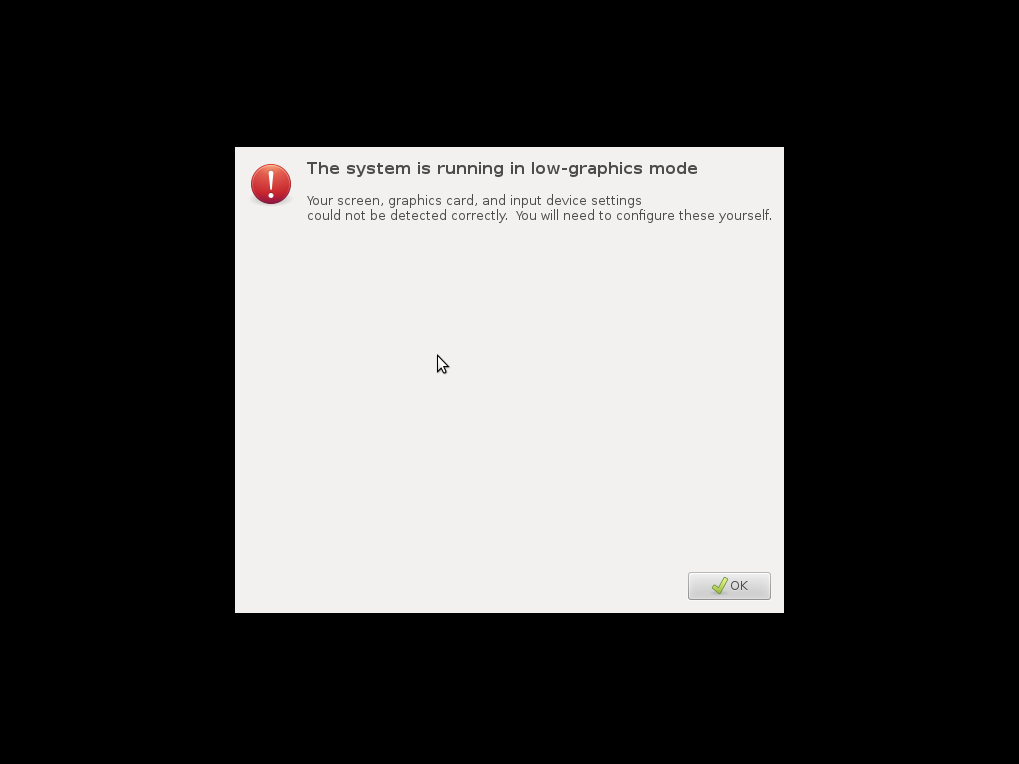

开机的时候显示the system is running in lowgraphics mode ,如图,离线下怎么解决啊?现在在学校,直接插网线连不了网的!
附件
不良少年
帖子: 29
注册时间: 2014-03-09 8:54
系统: win7+ubuntu

Re: 请问一下,我刚刚装的14.04启动的时候显示the system is runing...

#2

帖子 不良少年 » 2014-06-14 1:02

增加一句,这个是右麒麟14.04.。。
poloshiao
论坛版主
帖子: 18279
注册时间: 2009-08-04 16:33

Re: 请问一下,我刚刚装的14.04启动的时候显示the system is runing...

#3

帖子 poloshiao » 2014-06-14 7:32

刚刚装的14.04启动的时候显示
the system is running in lowgraphics mode
通常是 顯卡驅動 還沒妥善安裝
參閱
http://apexu.com/apexu/tw/modules/publi ... ?itemid=14
目的
讓你能順利登入桌面 妥善安裝 顯卡驅動
安裝好後 就不必再增加這些額外的參數

順利登入桌面後
把下面指令 複製 貼進終端機 執行
sudo lshw -numeric -class video
把結果直接複製貼上來
想要瞭解你的顯卡硬件及已安裝驅動的資訊
不良少年
帖子: 29
注册时间: 2014-03-09 8:54
系统: win7+ubuntu

Re: 请问一下,我刚刚装的14.04启动的时候显示the system is runing...

#4

帖子 不良少年 » 2014-06-14 8:29

順利登入桌面後
把下面指令 複製 貼進終端機 執行
sudo lshw -numeric -class video
把結果直接複製貼上來
想要瞭解你的顯卡硬件及已安裝驅動的資訊[/quote]

下面是输入这条指令之后的内容:
*-display UNCLAIMED
description: Display controller
product: Sun XT [Radeon HD 8670A/8670M/8690M] [1002:6660]
vendor: Advanced Micro Devices, Inc. [AMD/ATI] [1002]
physical id: 0
bus info: pci@0000:01:00.0
version: 00
width: 64 bits
clock: 33MHz
capabilities: pm pciexpress msi bus_master cap_list
configuration: latency=0
resources: memory:a0000000-afffffff memory:c2000000-c203ffff ioport:5000(size=256) memory:c2040000-c205ffff
*-display
description: VGA compatible controller
product: 3rd Gen Core processor Graphics Controller [8086:166]
vendor: Intel Corporation [8086]
physical id: 2
bus info: pci@0000:00:02.0
version: 09
width: 64 bits
clock: 33MHz
capabilities: msi pm vga_controller bus_master cap_list rom
configuration: driver=i915 latency=0
resources: irq:47 memory:c3000000-c33fffff memory:b0000000-bfffffff ioport:6000(size=64)
poloshiao
论坛版主
帖子: 18279
注册时间: 2009-08-04 16:33

Re: 请问一下,我刚刚装的14.04启动的时候显示the system is runing...

#5

帖子 poloshiao » 2014-06-14 9:24

product: Sun XT [Radeon HD 8670A/8670M/8690M] [1002:6660]
product: 3rd Gen Core processor Graphics Controller [8086:166]
1. 雙顯卡
1-1. 分工
Radeon : 負責 3D 加速與渲染 的運算
Intel : 負責顯示
1-2. Ubuntu 14.04 有比較好的支援 但是 Radeon 必須安裝閉源驅動 13.101 以上的版本
https://wiki.ubuntu.com/X/Config/HybridGraphics
product: Sun XT [Radeon HD 8670A/8670M/8690M] [1002:6660]
configuration: latency=0
2. 目前沒有作用中的驅動 (所以出現 the system is running in lowgraphics mode 的訊息)
2-1. 最新版本 合適閉源驅動 14.4
http://support.amd.com/en-us/download/d ... t-packages
2-2. 正式發行版 有適用版本限制
Automated installer and Display Drivers for Xorg/Xserver 6.9 and above (up to 1.13)
所以 在 Ubuntu 14.04 不適合
2-3. 最新版本 Beta 版 沒有版本限制 可以安裝看看
http://support.amd.com/en-us/download/d ... t-packages
2-3-1. 支援 HD 8000M Series
http://support.amd.com/en-us/kb-article ... river.aspx
AMD Mobility Product Family Compatibility ​
AMD Radeon™ HD 8000M Series
2-3-2. 安裝方法
http://support.amd.com/en-us/kb-article ... Notes.aspx
2-3-2-1. 在 Ubuntu 14.04 安裝 參考
https://help.ubuntu.com/community/Binar ... 7s_website
product: 3rd Gen Core processor Graphics Controller [8086:166]
configuration: driver=i915 latency=0
3. 目前 作用中 驅動 : 開源驅動 i915
http://packages.ubuntu.com/trusty/xserv ... ideo-intel
3-1. 使用 Intel 安裝程式 額外安裝 其他支援套件
https://01.org/linuxgraphics/downloads/ ... .0.5-linux


4. 額外工具
https://launchpad.net/ubuntu/+source/fglrx-pxpress
http://en.wikipedia.org/wiki/ATI_Hybrid ... owerXpress
回复
