为什么双显卡查询有的人显示VGA+3D Control 有的人却显示两个VGA的提示呢

[Lee2016]

01:00.0 3D controller: NVIDIA Corporation GM108M [GeForce 840M] (rev a2)
Subsystem: QUANTA Computer Inc Device 1117
Flags: fast devsel, IRQ 16
Memory at d2000000 (32-bit, non-prefetchable)
Memory at a0000000 (64-bit, prefetchable)
Memory at b0000000 (64-bit, prefetchable)
I/O ports at 5000
Expansion ROM at b2000000 [disabled]
Capabilities: <access denied>

00:02.0 VGA compatible controller: Intel Corporation 3rd Gen Core processor Graphics Controller (rev 09) (prog-if 00 [VGA controller])
Subsystem: QUANTA Computer Inc Device 0991
Flags: bus master, fast devsel, latency 0, IRQ 31
Memory at d3000000 (64-bit, non-prefetchable)
Memory at c0000000 (64-bit, prefetchable)
I/O ports at 6000
Expansion ROM at <unassigned> [disabled]
Capabilities: <access denied>
Kernel driver in use: i915
我的显示是这样，

可是更多的我看到的是这样的
A、00:02.0 VGA compatible controller: Intel Corporation 3rd Gen Core processor Graphics Controller (rev 09)
B、01:00.0 VGA compatible controller: NVIDIA Corporation GK104M [GeForce GTX 670MX] (rev ff)"


请问这两者有什么区别吗

[vickycq]

请问这两者有什么区别吗

参考 http://askubuntu.com/questions/733183/d ... controller

[[email protected]]

请问这两者有什么区别吗

参考 http://askubuntu.com/questions/733183/d ... controller

请问一下，我输入sudo lspci显示
00:02.0 VGA compatible controller: Intel Corporation Device 191b (rev 06)
01:00.0 3D controller: NVIDIA Corporation Device 139b (rev ff)
而不是我的gtx960M型号，是不是驱动没有安装好

[poloshiao]

请问一下，我输入sudo lspci显示

把下面指令 複製 貼進終端機 執行
sudo lspci -knn
把結果直接 選取/複製 貼上來

而不是我的gtx960M型号，是不是驱动没有安装好

跟驅動無關 單純偵測硬件

[[email protected]]

请问一下，我输入sudo lspci显示

把下面指令 複製 貼進終端機 執行
sudo lspci -knn
把結果直接 選取/複製 貼上來

而不是我的gtx960M型号，是不是驱动没有安装好

跟驅動無關 單純偵測硬件

lmp@Lenovo:~$ sudo lspci -knn
[sudo] password for lmp:
00:00.0 Host bridge [0600]: Intel Corporation Sky Lake Host Bridge/DRAM Registers [8086:1910] (rev 07)
Subsystem: Lenovo Device [17aa:3802]
00:01.0 PCI bridge [0604]: Intel Corporation Sky Lake PCIe Controller (x16) [8086:1901] (rev 07)
Kernel driver in use: pcieport
00:02.0 VGA compatible controller [0300]: Intel Corporation Device [8086:191b] (rev 06)
Subsystem: Lenovo Device [17aa:3802]
Kernel driver in use: i915
00:14.0 USB controller [0c03]: Intel Corporation Sunrise Point-H USB 3.0 xHCI Controller [8086:a12f] (rev 31)
Subsystem: Lenovo Device [17aa:3802]
Kernel driver in use: xhci_hcd
00:16.0 Communication controller [0780]: Intel Corporation Sunrise Point-H CSME HECI #1 [8086:a13a] (rev 31)
Subsystem: Lenovo Device [17aa:3802]
Kernel driver in use: mei_me
00:17.0 SATA controller [0106]: Intel Corporation Sunrise Point-H SATA Controller [AHCI mode] [8086:a103] (rev 31)
Subsystem: Lenovo Device [17aa:3802]
Kernel driver in use: ahci
00:1c.0 PCI bridge [0604]: Intel Corporation Sunrise Point-H PCI Express Root Port #2 [8086:a111] (rev f1)
Kernel driver in use: pcieport
00:1c.2 PCI bridge [0604]: Intel Corporation Sunrise Point-H PCI Express Root Port #3 [8086:a112] (rev f1)
Kernel driver in use: pcieport
00:1c.3 PCI bridge [0604]: Intel Corporation Sunrise Point-H PCI Express Root Port #4 [8086:a113] (rev f1)
Kernel driver in use: pcieport
00:1f.0 ISA bridge [0601]: Intel Corporation Sunrise Point-H LPC Controller [8086:a14e] (rev 31)
Subsystem: Lenovo Device [17aa:3802]
00:1f.2 Memory controller [0580]: Intel Corporation Sunrise Point-H PMC [8086:a121] (rev 31)
Subsystem: Lenovo Device [17aa:3802]
00:1f.3 Audio device [0403]: Intel Corporation Sunrise Point-H HD Audio [8086:a170] (rev 31)
Subsystem: Lenovo Device [17aa:3802]
Kernel driver in use: snd_hda_intel
00:1f.4 SMBus [0c05]: Intel Corporation Sunrise Point-H SMBus [8086:a123] (rev 31)
Subsystem: Lenovo Device [17aa:3802]
01:00.0 3D controller [0302]: NVIDIA Corporation GM107M [GeForce GTX 960M] [10de:139b] (rev ff)
Kernel driver in use: nouveau
07:00.0 SD Host controller [0805]: O2 Micro, Inc. SD/MMC Card Reader Controller [1217:8520] (rev 01)
Subsystem: Lenovo Device [17aa:3800]
Kernel driver in use: sdhci-pci
08:00.0 Network controller [0280]: Intel Corporation Device [8086:3166] (rev 79)
Subsystem: Intel Corporation Device [8086:4210]
Kernel driver in use: iwlwifi
09:00.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller [10ec:8168] (rev 15)
Subsystem: Lenovo Device [17aa:3831]
Kernel driver in use: r8169

Suddenly, my computer can't type chinese character , so thank you (in English)

[[email protected]]

请问一下，我输入sudo lspci显示

把下面指令 複製 貼進終端機 執行
sudo lspci -knn
把結果直接 選取/複製 貼上來

而不是我的gtx960M型号，是不是驱动没有安装好

跟驅動無關 單純偵測硬件

我不知道怎么调的，gtx960m可以显示了。非常感谢。刚才不能输入汉字不知道怎么回事，比如输入。han，就会自动分割成ha‘n

[susbarbatus]

不小心点到双拼了吧

[Lee2016]

请问这两者有什么区别吗

参考 http://askubuntu.com/questions/733183/d ... controller

意思是说 被定义成3d-controller的卡是不可以不独立进行图形渲染 的吗？ 我在贴吧还看到一个观点说 --- “因为有的双显卡的独立显卡是接在集成显卡上输出的，所以失败无数次，因为驱动总是只开一个显卡“ 我感觉我现在好像也是这种情况，安装完nvidia-352的显卡驱动以后，用prime切到intel集成显卡，重启一切正常，然后再切到nvidia显卡的时候重启黑屏，然后 我卸载nvidia驱动，开机正常 ，现在机子上装了nvidia-352 ，但只用intel集显，

还有切换到nvidia驱动的时候 系统设置打不开，显示系统内部发生错误，

问题表达的有点混乱，因为折腾了3天我也快不知道到底是哪里出的问题了，下面贴一些信息看下您帮我看看这是是什么原因装完驱动切到独显重启就黑屏，
网上的资料找了一遍但都是卸载驱动正常进去界面就没下文了

下面是切成intel集显的一些信息，
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
lee@lee-Mai-II:/$ prime-select query
intel

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
lee@lee-Mai-II:~$ uname -a
Linux lee-Mai-II 4.2.0-34-generic #39~14.04.1-Ubuntu SMP Fri Mar 11 11:38:02 UTC 2016 x86_64 x86_64 x86_64 GNU/Linux
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
lee@lee-Mai-II:~$ lspci -v （截取两个）

00:02.0 VGA compatible controller: Intel Corporation 3rd Gen Core processor Graphics Controller (rev 09) (prog-if 00 [VGA controller])
Subsystem: QUANTA Computer Inc Device 0991
Flags: bus master, fast devsel, latency 0, IRQ 31
Memory at d3000000 (64-bit, non-prefetchable)
Memory at c0000000 (64-bit, prefetchable)
I/O ports at 6000
Expansion ROM at <unassigned> [disabled]
Capabilities: <access denied>
Kernel driver in use: i915

01:00.0 3D controller: NVIDIA Corporation GM108M [GeForce 840M] (rev ff) (prog-if ff)
!!! Unknown header type 7f
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
lee@lee-Mai-II:/$ sudo lshw -c video
[sudo] password for lee:
*-display
description: VGA compatible controller
product: 3rd Gen Core processor Graphics Controller
vendor: Intel Corporation
physical id: 2
bus info: pci@0000:00:02.0
version: 09
width: 64 bits
clock: 33MHz
capabilities: msi pm vga_controller bus_master cap_list rom
configuration: driver=i915 latency=0
resources: irq:31 memory:d3000000-d33fffff memory:c0000000-cfffffff ioport:6000(size=64)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
lee@lee-Mai-II:/$ glxinfo | more
name of display: :0
display: :0 screen: 0
direct rendering: Yes
server glx vendor string: SGI
server glx version string: 1.4
server glx extensions:
GLX_ARB_create_context, GLX_ARB_create_context_profile,
GLX_ARB_create_context_robustness, GLX_ARB_fbconfig_float,
GLX_ARB_framebuffer_sRGB, GLX_ARB_multisample,
GLX_EXT_create_context_es2_profile, GLX_EXT_framebuffer_sRGB,
GLX_EXT_import_context, GLX_EXT_texture_from_pixmap, GLX_EXT_visual_info
,
GLX_EXT_visual_rating, GLX_INTEL_swap_event, GLX_MESA_copy_sub_buffer,
GLX_OML_swap_method, GLX_SGIS_multisample, GLX_SGIX_fbconfig,
GLX_SGIX_pbuffer, GLX_SGIX_visual_select_group, GLX_SGI_swap_control
client glx vendor string: Mesa Project and SGI
client glx version string: 1.4
client glx extensions:
GLX_ARB_create_context, GLX_ARB_create_context_profile,
GLX_ARB_create_context_robustness, GLX_ARB_fbconfig_float,
GLX_ARB_framebuffer_sRGB, GLX_ARB_get_proc_address, GLX_ARB_multisample,

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

以下是切成nvidia显卡时的信息：（此时 点击系统设置已经没反应，尚未注销重启的情况下）
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
lee@lee-Mai-II:/$ sudo prime-select nvidia
update-alternatives: using /usr/lib/nvidia-352/ld.so.conf to provide /etc/ld.so.conf.d/x86_64-linux-gnu_GL.conf (x86_64-linux-gnu_gl_conf) in 手动模式
update-alternatives: using /usr/lib/nvidia-352/alt_ld.so.conf to provide /etc/ld.so.conf.d/i386-linux-gnu_GL.conf (i386-linux-gnu_gl_conf) in 手动模式
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
lee@lee-Mai-II:/$ prime-select query
nvidia
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
lee@lee-Mai-II:~$ lspci -v
00:02.0 VGA compatible controller: Intel Corporation 3rd Gen Core processor Graphics Controller (rev 09) (prog-if 00 [VGA controller])
Subsystem: QUANTA Computer Inc Device 0991
Flags: bus master, fast devsel, latency 0, IRQ 31
Memory at d3000000 (64-bit, non-prefetchable)
Memory at c0000000 (64-bit, prefetchable)
I/O ports at 6000
Expansion ROM at <unassigned> [disabled]
Capabilities: <access denied>
Kernel driver in use: i915
01:00.0 3D controller: NVIDIA Corporation GM108M [GeForce 840M] (rev ff) (prog-if ff)
!!! Unknown header type 7f

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
lee@lee-Mai-II:~$ sudo lshw -c video
[sudo] password for lee:
*-display
description: VGA compatible controller
product: 3rd Gen Core processor Graphics Controller
vendor: Intel Corporation
physical id: 2
bus info: pci@0000:00:02.0
version: 09
width: 64 bits
clock: 33MHz
capabilities: msi pm vga_controller bus_master cap_list rom
configuration: driver=i915 latency=0
resources: irq:31 memory:d3000000-d33fffff memory:c0000000-cfffffff ioport:6000(size=64)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
lee@lee-Mai-II:~$ glxinfo | more
X Error of failed request: BadValue (integer parameter out of range for operation)
Major opcode of failed request: 154 (GLX)
Minor opcode of failed request: 24 (X_GLXCreateNewContext)
Value in failed request: 0x0
Serial number of failed request: 31
Current serial number in output stream: 32
name of display: :0

[Lee2016]

请问这两者有什么区别吗

参考 http://askubuntu.com/questions/733183/d ... controller

最新情况，我把neavou加入黑名单，然后选择nvidia驱动，注销，然后显示 your system run in low graphics

百度一下 这个问题貌似参考的资料多点

[poloshiao]

以下是切成nvidia显卡时的信息：
lspci -v
Kernel driver in use: i915
sudo lshw -c video
configuration: driver=i915 latency=0

1. i915 是 Intel 的開源驅動
不是 nvidia 的閉源驅動

显示 your system run in low graphics

2. 表示沒有合適驅動 或 未正確設定/啟用

[Lee2016]

以下是切成nvidia显卡时的信息：
lspci -v
Kernel driver in use: i915
sudo lshw -c video
configuration: driver=i915 latency=0

i915 是 Intel 的開源驅動
不是 nvidia 的閉源驅動

显示 your system run in low graphics

表示沒有合適驅動 或 未正確設定/啟用

学习了，请问怎么查看是否正确设定启用了呢？需要自己手动设定的吗？驱动的配置文件，日志什么的在哪里我都还没搞清楚

[poloshiao]

gtx960M

3. http://www.geforce.com/hardware/noteboo ... e-gtx-960m
gtx960M 具有 optimus 功能
3-1. http://www.geforce.com/hardware/technology/optimus
3-2. http://www.geforce.com/hardware/technol ... technology
Using NVIDIA's Optimus technology, when the discrete GPU is handling all the rendering duties, the final image output to the display is still handled by the Intel integrated graphics processor (IGP).
3-2-1. 具有 optimus 功能的雙顯卡
設計上就是 nVidia 負責處理 3D 及 高端 計算
把 單純顯示的任務 交給 Intel
兩者合作 效能較高 溫度較低

双显卡查询有的人显示VGA+3D Control

3-2-2. 上面 3-2-1. 的描述 希望有助於你對 3D Control 的理解

切成intel集显
切成nvidia显卡

3-3. 為何你要另外追求切成單顯卡
捨棄原來設計的兩張顯卡合作模式 ?

现在机子上装了nvidia-352
怎么查看是否正确设定启用了呢

4. 表示你是從 Ubuntu 套件庫 安裝閉源驅動 nvidia-352
4-1. 細節參閱
https://help.ubuntu.com/community/Binar ... wto/Nvidia
NVIDIA drivers provided by the Ubuntu repositories

5. 一切搞定 重新開機
把下面指令 複製 貼進終端機 執行
nvidia-settings --glxinfo | grep "OpenGL version string"
把結果直接 選取/複製 貼上來

6. 還有任何問題 歡迎再貼文

[Lee2016]

gtx960M

3. http://www.geforce.com/hardware/noteboo ... e-gtx-960m
gtx960M 具有 optimus 功能
3-1. http://www.geforce.com/hardware/technology/optimus
3-2. http://www.geforce.com/hardware/technol ... technology
Using NVIDIA's Optimus technology, when the discrete GPU is handling all the rendering duties, the final image output to the display is still handled by the Intel integrated graphics processor (IGP).
3-2-1. 具有 optimus 功能的雙顯卡
設計上就是 nVidia 負責處理 3D 及 高端 計算
把 單純顯示的任務 交給 Intel
兩者合作 效能較高 溫度較低

双显卡查询有的人显示VGA+3D Control

3-2-2. 上面 3-2-1. 的描述 希望有助於你對 3D Control 的理解

切成intel集显
切成nvidia显卡

3-3. 為何你要另外追求切成單顯卡
捨棄原來設計的兩張顯卡合作模式 ?

现在机子上装了nvidia-352
怎么查看是否正确设定启用了呢

4. 表示你是從 Ubuntu 套件庫 安裝閉源驅動 nvidia-352
4-1. 細節參閱
https://help.ubuntu.com/community/Binar ... wto/Nvidia
NVIDIA drivers provided by the Ubuntu repositories

5. 一切搞定 重新開機
把下面指令 複製 貼進終端機 執行
nvidia-settings --glxinfo | grep "OpenGL version string"
把結果直接 選取/複製 貼上來

6. 還有任何問題 歡迎再貼文

好的，谢谢你的回答，我还有点不懂那里面的驱动和软件中心里面的有什么区别？还有发现不管是这里还是软件中心的驱动版本都写着适用ubuntu14.04.1 会不会和我现在的14.04.4的系统不兼容呢？

[poloshiao]

那里面的驱动和软件中心里面的有什么区别？

都一樣

[Lee2016]

那里面的驱动和软件中心里面的有什么区别？

都一樣

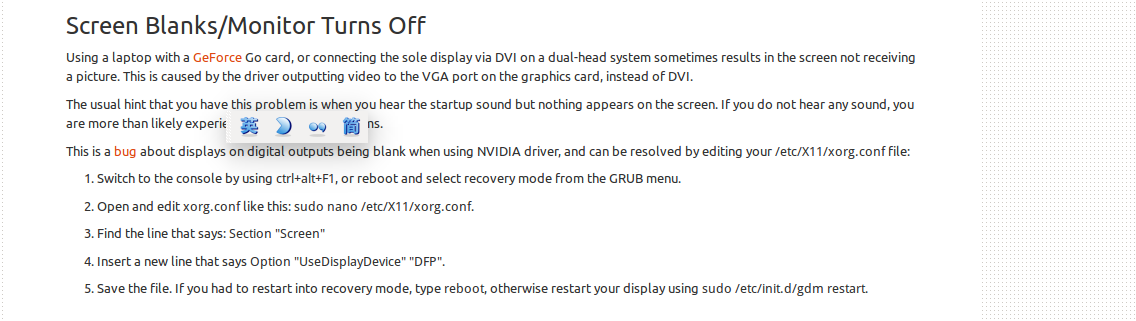

在你的那个链接帖子里找到了一个和我的情况和相似：

我的也是重启以后听到系统开机提示的声音，但是屏幕一片黑，照他的方法还是不行

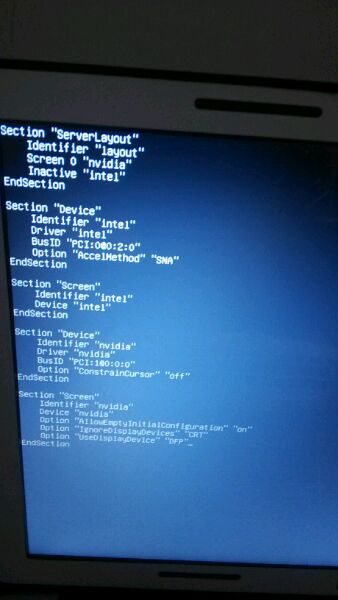

第二次把ignore的那一行去掉了还是不行
