gtx970驱动安装
-
- 帖子: 166
- 注册时间: 2015-01-07 16:41
- 系统: ubuntu 14.04
gtx970驱动安装

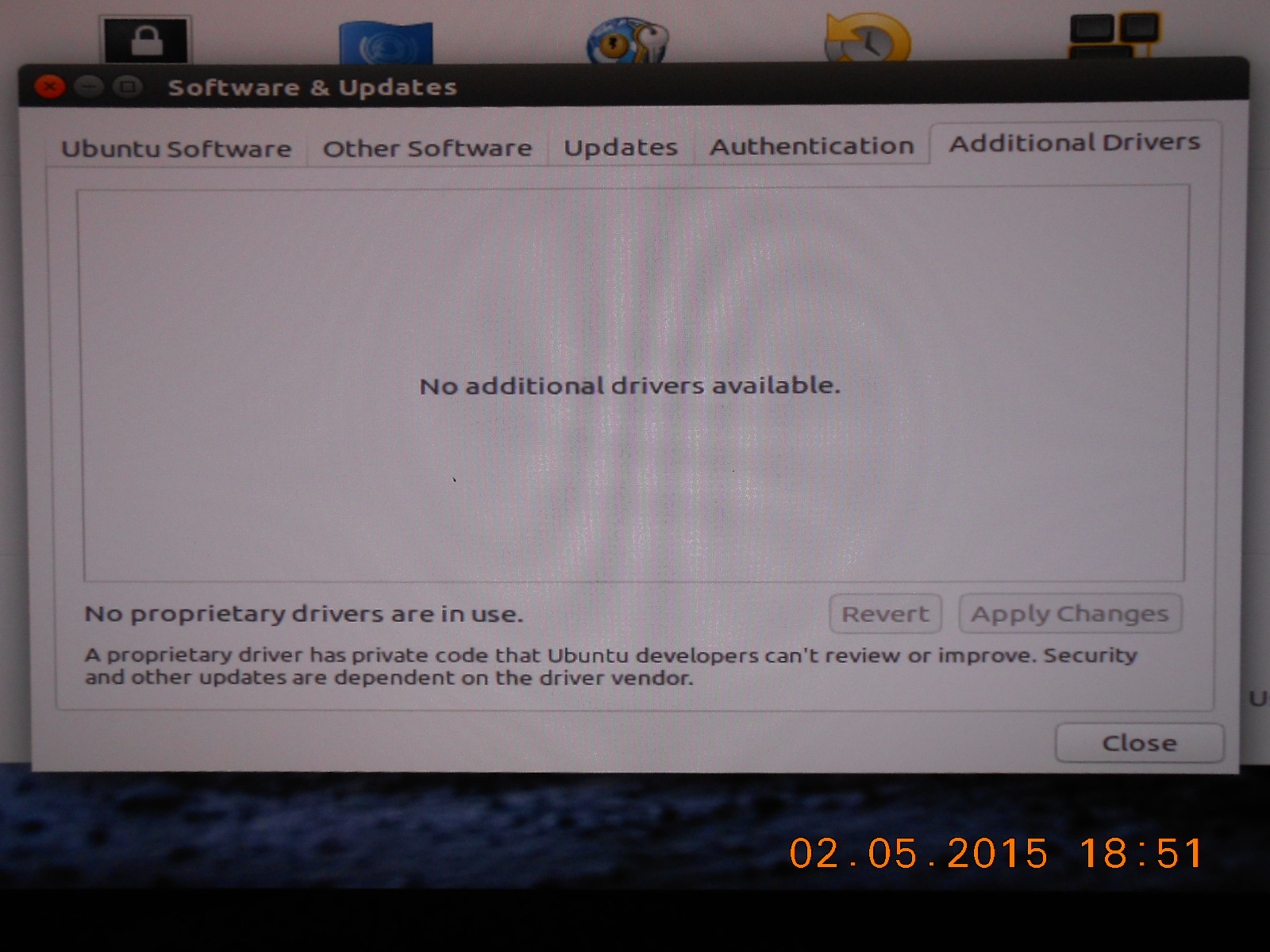

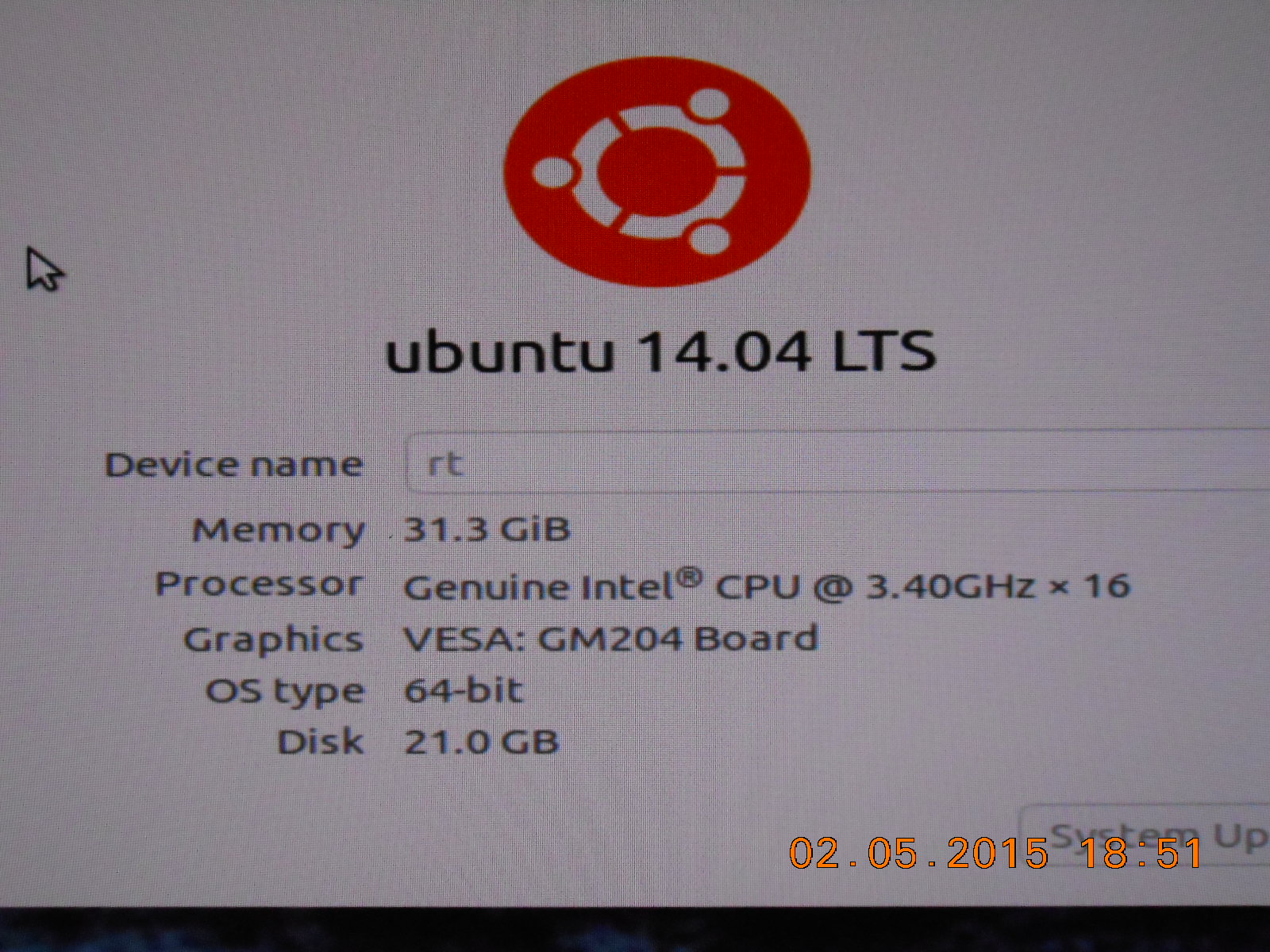

问题如下:14.04系统安装好后,只能以1024*768分辨率显示(27寸2K显示器)。按Ctrl+Alt+F1后屏幕变黑,无法看到左上角的命令提示符。软件更新面板中的最后一个添加硬件卡片中无任何显卡驱动显示。用软件中心搜索nv后可以找到304.123的驱动,安装后重启机器,只能在登录界面,输入密码后屏幕闪了闪就又显示登录界面,无法进入桌面。查了下NV的官网,304.123驱动不支持GTX970。但在登录界面按Ctrl+ALT+F1后可以看到左上角的命令提示符。然后进行手动安装346.59驱动。无法安装。请各位帮帮忙看看这个问题怎么解决。我现在只要能进入CTRL+ALT+F1模式后能操作就好办了。
-
- 帖子: 166
- 注册时间: 2015-01-07 16:41
- 系统: ubuntu 14.04
Re: gtx970驱动安装
自己顶,不要让帖子沉下去了。各位,帮帮忙啊。
-
- 帖子: 3
- 注册时间: 2013-12-05 19:50
- 系统: ubuntu13.04
Re: gtx970驱动安装
之前安装过nv驱动,装了好久没成功。后面放弃了。你多下几个版本试试,不一定最新的驱动就行
来自我的 MI 1SC 上的 Tapatalk
来自我的 MI 1SC 上的 Tapatalk
#include <stdio.h>
void main()
{
double boring;
unsigned angry;
short patience;
long wait;
printf("I **** you.\n");
}
void main()
{
double boring;
unsigned angry;
short patience;
long wait;
printf("I **** you.\n");
}
-
- 论坛版主
- 帖子: 18279
- 注册时间: 2009-08-04 16:33
Re: gtx970驱动安装
1. 支援的 閉源驅動GTX970
343.22 開始 或 346.22 BETA 開始
1-1. http://www.nvidia.com/Download/driverRe ... 7844/en-us
Version: 343.22
Added support for the following GPUs:
GeForce GTX 970
1-2. http://www.nvidia.com/Download/driverRe ... 0653/en-us
Version: 346.22 BETA
Supported products
GeForce GTX 970
2. 支援的 開源驅動
http://nouveau.freedesktop.org/wiki/CodeNames/
NV110 family (Maxwell)
NV124 (GM204) GeForce GTX (970, 980)
3. 把下面指令 複製 貼進終端機 執行
3-1. uname -r
3-2. sudo lspci -knn
3-3. sudo lshw -numeric -class video
3-4. sudo ubuntu-drivers devices
把結果直接 選取/複製 貼上來
不必擷圖
-
- 帖子: 166
- 注册时间: 2015-01-07 16:41
- 系统: ubuntu 14.04
Re: gtx970驱动安装
回复4楼提出的要求,新装14.04.2,没有进行过更新。在执行sudo lspci -knn时,因为分辨率是1024*768,所以执行完这个命令后,开头的部分超出了显示范围,具体有多少不能显示出来我不知道。望谅解。
rt@rt:~$ uname -r
3.16.0-30-generic
rt@rt:~$
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ahci
00:14.0 USB controller [0c03]: Intel Corporation Wellsburg USB xHCI Host Controller [8086:8d31] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: xhci_hcd
00:1a.0 USB controller [0c03]: Intel Corporation Wellsburg USB Enhanced Host Controller #2 [8086:8d2d] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ehci-pci
00:1b.0 Audio device [0403]: Intel Corporation Wellsburg HD Audio Controller [8086:8d20] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: snd_hda_intel
00:1c.0 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #1 [8086:8d10] (rev d5)
Kernel driver in use: pcieport
00:1c.2 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #3 [8086:8d14] (rev d5)
Kernel driver in use: pcieport
00:1c.3 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #4 [8086:8d16] (rev d5)
Kernel driver in use: pcieport
00:1c.4 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #5 [8086:8d18] (rev d5)
Kernel driver in use: pcieport
00:1d.0 USB controller [0c03]: Intel Corporation Wellsburg USB Enhanced Host Controller #1 [8086:8d26] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ehci-pci
00:1f.0 ISA bridge [0601]: Intel Corporation Wellsburg LPC Controller [8086:8d44] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: lpc_ich
00:1f.2 SATA controller [0106]: Intel Corporation Wellsburg 6-Port SATA Controller [AHCI mode] [8086:8d02] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ahci
00:1f.3 SMBus [0c05]: Intel Corporation Wellsburg SMBus Controller [8086:8d22] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
03:00.0 VGA compatible controller [0300]: NVIDIA Corporation Device [10de:13c2] (rev a1)
Subsystem: NVIDIA Corporation Device [10de:1131]
03:00.1 Audio device [0403]: NVIDIA Corporation Device [10de:0fbb] (rev a1)
Subsystem: NVIDIA Corporation Device [10de:1131]
Kernel driver in use: snd_hda_intel
05:00.0 Ethernet controller [0200]: Intel Corporation I210 Gigabit Network Connection [8086:1533] (rev 03)
Subsystem: Super Micro Computer Inc Device [15d9:1533]
Kernel driver in use: igb
06:00.0 Ethernet controller [0200]: Intel Corporation I210 Gigabit Network Connection [8086:1533] (rev 03)
Subsystem: Super Micro Computer Inc Device [15d9:1533]
Kernel driver in use: igb
7f:08.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f80] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f80]
7f:08.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 0 [8086:2f32] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f32]
7f:08.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f83] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f83]
7f:09.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f90] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f90]
7f:09.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 1 [8086:2f33] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f33]
7f:09.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f93] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f93]
7f:0b.0 System peripheral [0880]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81]
7f:0b.1 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36]
7f:0b.2 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37]
7f:0c.0 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe0] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe0]
7f:0c.1 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe1] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe1]
7f:0c.2 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe2] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe2]
7f:0c.3 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe3] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe3]
7f:0c.4 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe4] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe4]
7f:0c.5 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe5] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe5]
7f:0c.6 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe6] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe6]
7f:0c.7 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe7] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe7]
7f:0f.0 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff8] (rev 01)
7f:0f.1 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff9] (rev 01)
7f:0f.2 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffa] (rev 01)
7f:0f.3 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffb] (rev 01)
7f:0f.4 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffc] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
7f:0f.5 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffd] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
7f:0f.6 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffe] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
7f:10.0 System peripheral [0880]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d]
7f:10.1 Performance counters [1101]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34]
7f:10.5 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e]
7f:10.6 Performance counters [1101]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d]
7f:10.7 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f]
7f:12.0 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0]
7f:12.1 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 0 [8086:2f30] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2f30]
7f:12.4 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 1 [8086:2f60] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f60]
7f:12.5 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 1 [8086:2f38] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f38]
7f:13.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8]
7f:13.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71]
7f:13.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa]
7f:13.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab]
7f:13.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 0/1 Broadcast [8086:2fae] (rev 01)
7f:13.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2faf] (rev 01)
7f:14.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0]
7f:14.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1]
7f:14.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2]
7f:14.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3]
7f:14.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbc] (rev 01)
7f:14.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbd] (rev 01)
7f:14.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbe] (rev 01)
7f:14.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbf] (rev 01)
7f:16.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68]
7f:16.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79]
7f:16.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a]
7f:16.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b]
7f:16.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 2/3 Broadcast [8086:2f6e] (rev 01)
7f:16.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2f6f] (rev 01)
7f:17.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0]
7f:17.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1]
7f:17.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2]
7f:17.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3]
7f:17.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb8] (rev 01)
7f:17.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb9] (rev 01)
7f:17.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fba] (rev 01)
7f:17.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fbb] (rev 01)
7f:1e.0 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f98] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f98]
7f:1e.1 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f99] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f99]
7f:1e.2 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9a] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9a]
7f:1e.3 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2fc0] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2fc0]
7f:1e.4 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9c] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9c]
7f:1f.0 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f88] (rev 01)
7f:1f.2 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f8a] (rev 01)
80:04.0 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 0 [8086:2f20] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.1 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 1 [8086:2f21] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.2 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 2 [8086:2f22] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.3 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 3 [8086:2f23] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.4 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 4 [8086:2f24] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.5 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 5 [8086:2f25] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.6 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 6 [8086:2f26] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.7 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 7 [8086:2f27] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:05.0 System peripheral [0880]: Intel Corporation Haswell-E Address Map, VTd_Misc, System Management [8086:2f28] (rev 01)
80:05.1 System peripheral [0880]: Intel Corporation Haswell-E Hot Plug [8086:2f29] (rev 01)
80:05.2 System peripheral [0880]: Intel Corporation Haswell-E RAS, Control Status and Global Errors [8086:2f2a] (rev 01)
80:05.4 PIC [0800]: Intel Corporation Haswell-E I/O Apic [8086:2f2c] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
ff:08.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f80] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f80]
ff:08.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 0 [8086:2f32] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f32]
ff:08.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f83] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f83]
ff:09.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f90] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f90]
ff:09.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 1 [8086:2f33] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f33]
ff:09.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f93] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f93]
ff:0b.0 System peripheral [0880]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81]
ff:0b.1 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36]
ff:0b.2 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37]
ff:0c.0 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe0] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe0]
ff:0c.1 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe1] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe1]
ff:0c.2 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe2] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe2]
ff:0c.3 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe3] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe3]
ff:0c.4 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe4] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe4]
ff:0c.5 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe5] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe5]
ff:0c.6 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe6] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe6]
ff:0c.7 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe7] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe7]
ff:0f.0 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff8] (rev 01)
ff:0f.1 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff9] (rev 01)
ff:0f.2 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffa] (rev 01)
ff:0f.3 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffb] (rev 01)
ff:0f.4 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffc] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
ff:0f.5 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffd] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
ff:0f.6 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffe] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
ff:10.0 System peripheral [0880]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d]
ff:10.1 Performance counters [1101]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34]
ff:10.5 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e]
ff:10.6 Performance counters [1101]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d]
ff:10.7 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f]
ff:12.0 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0]
ff:12.1 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 0 [8086:2f30] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2f30]
ff:12.4 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 1 [8086:2f60] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f60]
ff:12.5 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 1 [8086:2f38] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f38]
ff:13.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8]
ff:13.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71]
ff:13.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa]
ff:13.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab]
ff:13.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 0/1 Broadcast [8086:2fae] (rev 01)
ff:13.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2faf] (rev 01)
ff:14.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0]
ff:14.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1]
ff:14.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2]
ff:14.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3]
ff:14.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbc] (rev 01)
ff:14.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbd] (rev 01)
ff:14.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbe] (rev 01)
ff:14.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbf] (rev 01)
ff:16.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68]
ff:16.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79]
ff:16.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a]
ff:16.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b]
ff:16.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 2/3 Broadcast [8086:2f6e] (rev 01)
ff:16.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2f6f] (rev 01)
ff:17.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0]
ff:17.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1]
ff:17.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2]
ff:17.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3]
ff:17.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb8] (rev 01)
ff:17.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb9] (rev 01)
ff:17.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fba] (rev 01)
ff:17.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fbb] (rev 01)
ff:1e.0 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f98] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f98]
ff:1e.1 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f99] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f99]
ff:1e.2 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9a] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9a]
ff:1e.3 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2fc0] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2fc0]
ff:1e.4 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9c] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9c]
ff:1f.0 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f88] (rev 01)
ff:1f.2 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f8a] (rev 01)
rt@rt:~$
rt@rt:~$ sudo lshw -numeric -class video
*-display UNCLAIMED
description: VGA compatible controller
product: NVIDIA Corporation [10DE:13C2]
vendor: NVIDIA Corporation [10DE]
physical id: 0
bus info: pci@0000:03:00.0
version: a1
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress vga_controller cap_list
configuration: latency=0
resources: memory:ef000000-efffffff memory:c0000000-cfffffff memory:d0000000-d1ffffff ioport:6000(size=128) memory:f0000000-f007ffff
rt@rt:~$ sudo ubuntu-drivers devices
rt@rt:~$
rt@rt:~$ uname -r
3.16.0-30-generic
rt@rt:~$
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ahci
00:14.0 USB controller [0c03]: Intel Corporation Wellsburg USB xHCI Host Controller [8086:8d31] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: xhci_hcd
00:1a.0 USB controller [0c03]: Intel Corporation Wellsburg USB Enhanced Host Controller #2 [8086:8d2d] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ehci-pci
00:1b.0 Audio device [0403]: Intel Corporation Wellsburg HD Audio Controller [8086:8d20] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: snd_hda_intel
00:1c.0 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #1 [8086:8d10] (rev d5)
Kernel driver in use: pcieport
00:1c.2 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #3 [8086:8d14] (rev d5)
Kernel driver in use: pcieport
00:1c.3 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #4 [8086:8d16] (rev d5)
Kernel driver in use: pcieport
00:1c.4 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #5 [8086:8d18] (rev d5)
Kernel driver in use: pcieport
00:1d.0 USB controller [0c03]: Intel Corporation Wellsburg USB Enhanced Host Controller #1 [8086:8d26] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ehci-pci
00:1f.0 ISA bridge [0601]: Intel Corporation Wellsburg LPC Controller [8086:8d44] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: lpc_ich
00:1f.2 SATA controller [0106]: Intel Corporation Wellsburg 6-Port SATA Controller [AHCI mode] [8086:8d02] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ahci
00:1f.3 SMBus [0c05]: Intel Corporation Wellsburg SMBus Controller [8086:8d22] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
03:00.0 VGA compatible controller [0300]: NVIDIA Corporation Device [10de:13c2] (rev a1)
Subsystem: NVIDIA Corporation Device [10de:1131]
03:00.1 Audio device [0403]: NVIDIA Corporation Device [10de:0fbb] (rev a1)
Subsystem: NVIDIA Corporation Device [10de:1131]
Kernel driver in use: snd_hda_intel
05:00.0 Ethernet controller [0200]: Intel Corporation I210 Gigabit Network Connection [8086:1533] (rev 03)
Subsystem: Super Micro Computer Inc Device [15d9:1533]
Kernel driver in use: igb
06:00.0 Ethernet controller [0200]: Intel Corporation I210 Gigabit Network Connection [8086:1533] (rev 03)
Subsystem: Super Micro Computer Inc Device [15d9:1533]
Kernel driver in use: igb
7f:08.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f80] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f80]
7f:08.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 0 [8086:2f32] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f32]
7f:08.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f83] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f83]
7f:09.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f90] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f90]
7f:09.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 1 [8086:2f33] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f33]
7f:09.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f93] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f93]
7f:0b.0 System peripheral [0880]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81]
7f:0b.1 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36]
7f:0b.2 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37]
7f:0c.0 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe0] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe0]
7f:0c.1 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe1] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe1]
7f:0c.2 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe2] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe2]
7f:0c.3 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe3] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe3]
7f:0c.4 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe4] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe4]
7f:0c.5 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe5] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe5]
7f:0c.6 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe6] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe6]
7f:0c.7 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe7] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe7]
7f:0f.0 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff8] (rev 01)
7f:0f.1 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff9] (rev 01)
7f:0f.2 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffa] (rev 01)
7f:0f.3 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffb] (rev 01)
7f:0f.4 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffc] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
7f:0f.5 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffd] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
7f:0f.6 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffe] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
7f:10.0 System peripheral [0880]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d]
7f:10.1 Performance counters [1101]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34]
7f:10.5 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e]
7f:10.6 Performance counters [1101]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d]
7f:10.7 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f]
7f:12.0 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0]
7f:12.1 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 0 [8086:2f30] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2f30]
7f:12.4 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 1 [8086:2f60] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f60]
7f:12.5 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 1 [8086:2f38] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f38]
7f:13.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8]
7f:13.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71]
7f:13.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa]
7f:13.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab]
7f:13.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 0/1 Broadcast [8086:2fae] (rev 01)
7f:13.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2faf] (rev 01)
7f:14.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0]
7f:14.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1]
7f:14.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2]
7f:14.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3]
7f:14.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbc] (rev 01)
7f:14.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbd] (rev 01)
7f:14.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbe] (rev 01)
7f:14.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbf] (rev 01)
7f:16.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68]
7f:16.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79]
7f:16.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a]
7f:16.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b]
7f:16.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 2/3 Broadcast [8086:2f6e] (rev 01)
7f:16.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2f6f] (rev 01)
7f:17.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0]
7f:17.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1]
7f:17.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2]
7f:17.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3]
7f:17.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb8] (rev 01)
7f:17.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb9] (rev 01)
7f:17.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fba] (rev 01)
7f:17.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fbb] (rev 01)
7f:1e.0 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f98] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f98]
7f:1e.1 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f99] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f99]
7f:1e.2 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9a] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9a]
7f:1e.3 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2fc0] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2fc0]
7f:1e.4 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9c] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9c]
7f:1f.0 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f88] (rev 01)
7f:1f.2 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f8a] (rev 01)
80:04.0 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 0 [8086:2f20] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.1 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 1 [8086:2f21] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.2 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 2 [8086:2f22] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.3 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 3 [8086:2f23] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.4 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 4 [8086:2f24] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.5 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 5 [8086:2f25] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.6 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 6 [8086:2f26] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.7 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 7 [8086:2f27] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:05.0 System peripheral [0880]: Intel Corporation Haswell-E Address Map, VTd_Misc, System Management [8086:2f28] (rev 01)
80:05.1 System peripheral [0880]: Intel Corporation Haswell-E Hot Plug [8086:2f29] (rev 01)
80:05.2 System peripheral [0880]: Intel Corporation Haswell-E RAS, Control Status and Global Errors [8086:2f2a] (rev 01)
80:05.4 PIC [0800]: Intel Corporation Haswell-E I/O Apic [8086:2f2c] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
ff:08.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f80] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f80]
ff:08.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 0 [8086:2f32] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f32]
ff:08.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f83] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f83]
ff:09.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f90] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f90]
ff:09.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 1 [8086:2f33] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f33]
ff:09.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f93] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f93]
ff:0b.0 System peripheral [0880]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81]
ff:0b.1 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36]
ff:0b.2 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37]
ff:0c.0 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe0] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe0]
ff:0c.1 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe1] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe1]
ff:0c.2 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe2] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe2]
ff:0c.3 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe3] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe3]
ff:0c.4 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe4] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe4]
ff:0c.5 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe5] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe5]
ff:0c.6 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe6] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe6]
ff:0c.7 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe7] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe7]
ff:0f.0 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff8] (rev 01)
ff:0f.1 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff9] (rev 01)
ff:0f.2 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffa] (rev 01)
ff:0f.3 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffb] (rev 01)
ff:0f.4 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffc] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
ff:0f.5 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffd] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
ff:0f.6 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffe] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
ff:10.0 System peripheral [0880]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d]
ff:10.1 Performance counters [1101]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34]
ff:10.5 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e]
ff:10.6 Performance counters [1101]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d]
ff:10.7 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f]
ff:12.0 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0]
ff:12.1 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 0 [8086:2f30] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2f30]
ff:12.4 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 1 [8086:2f60] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f60]
ff:12.5 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 1 [8086:2f38] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f38]
ff:13.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8]
ff:13.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71]
ff:13.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa]
ff:13.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab]
ff:13.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 0/1 Broadcast [8086:2fae] (rev 01)
ff:13.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2faf] (rev 01)
ff:14.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0]
ff:14.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1]
ff:14.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2]
ff:14.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3]
ff:14.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbc] (rev 01)
ff:14.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbd] (rev 01)
ff:14.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbe] (rev 01)
ff:14.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbf] (rev 01)
ff:16.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68]
ff:16.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79]
ff:16.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a]
ff:16.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b]
ff:16.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 2/3 Broadcast [8086:2f6e] (rev 01)
ff:16.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2f6f] (rev 01)
ff:17.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0]
ff:17.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1]
ff:17.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2]
ff:17.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3]
ff:17.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb8] (rev 01)
ff:17.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb9] (rev 01)
ff:17.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fba] (rev 01)
ff:17.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fbb] (rev 01)
ff:1e.0 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f98] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f98]
ff:1e.1 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f99] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f99]
ff:1e.2 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9a] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9a]
ff:1e.3 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2fc0] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2fc0]
ff:1e.4 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9c] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9c]
ff:1f.0 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f88] (rev 01)
ff:1f.2 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f8a] (rev 01)
rt@rt:~$
rt@rt:~$ sudo lshw -numeric -class video
*-display UNCLAIMED
description: VGA compatible controller
product: NVIDIA Corporation [10DE:13C2]
vendor: NVIDIA Corporation [10DE]
physical id: 0
bus info: pci@0000:03:00.0
version: a1
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress vga_controller cap_list
configuration: latency=0
resources: memory:ef000000-efffffff memory:c0000000-cfffffff memory:d0000000-d1ffffff ioport:6000(size=128) memory:f0000000-f007ffff
rt@rt:~$ sudo ubuntu-drivers devices
rt@rt:~$
-
- 帖子: 166
- 注册时间: 2015-01-07 16:41
- 系统: ubuntu 14.04
Re: gtx970驱动安装
回复4楼提出的要求,新装14.04.2,没有进行过更新。在执行sudo lspci -knn时,因为分辨率是1024*768,所以执行完这个命令后,开头的部分超出了显示范围,具体有多少不能显示出来我不知道。望谅解。
rt@rt:~$ uname -r
3.16.0-30-generic
rt@rt:~$
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ahci
00:14.0 USB controller [0c03]: Intel Corporation Wellsburg USB xHCI Host Controller [8086:8d31] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: xhci_hcd
00:1a.0 USB controller [0c03]: Intel Corporation Wellsburg USB Enhanced Host Controller #2 [8086:8d2d] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ehci-pci
00:1b.0 Audio device [0403]: Intel Corporation Wellsburg HD Audio Controller [8086:8d20] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: snd_hda_intel
00:1c.0 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #1 [8086:8d10] (rev d5)
Kernel driver in use: pcieport
00:1c.2 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #3 [8086:8d14] (rev d5)
Kernel driver in use: pcieport
00:1c.3 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #4 [8086:8d16] (rev d5)
Kernel driver in use: pcieport
00:1c.4 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #5 [8086:8d18] (rev d5)
Kernel driver in use: pcieport
00:1d.0 USB controller [0c03]: Intel Corporation Wellsburg USB Enhanced Host Controller #1 [8086:8d26] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ehci-pci
00:1f.0 ISA bridge [0601]: Intel Corporation Wellsburg LPC Controller [8086:8d44] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: lpc_ich
00:1f.2 SATA controller [0106]: Intel Corporation Wellsburg 6-Port SATA Controller [AHCI mode] [8086:8d02] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ahci
00:1f.3 SMBus [0c05]: Intel Corporation Wellsburg SMBus Controller [8086:8d22] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
03:00.0 VGA compatible controller [0300]: NVIDIA Corporation Device [10de:13c2] (rev a1)
Subsystem: NVIDIA Corporation Device [10de:1131]
03:00.1 Audio device [0403]: NVIDIA Corporation Device [10de:0fbb] (rev a1)
Subsystem: NVIDIA Corporation Device [10de:1131]
Kernel driver in use: snd_hda_intel
05:00.0 Ethernet controller [0200]: Intel Corporation I210 Gigabit Network Connection [8086:1533] (rev 03)
Subsystem: Super Micro Computer Inc Device [15d9:1533]
Kernel driver in use: igb
06:00.0 Ethernet controller [0200]: Intel Corporation I210 Gigabit Network Connection [8086:1533] (rev 03)
Subsystem: Super Micro Computer Inc Device [15d9:1533]
Kernel driver in use: igb
7f:08.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f80] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f80]
7f:08.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 0 [8086:2f32] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f32]
7f:08.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f83] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f83]
7f:09.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f90] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f90]
7f:09.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 1 [8086:2f33] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f33]
7f:09.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f93] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f93]
7f:0b.0 System peripheral [0880]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81]
7f:0b.1 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36]
7f:0b.2 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37]
7f:0c.0 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe0] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe0]
7f:0c.1 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe1] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe1]
7f:0c.2 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe2] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe2]
7f:0c.3 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe3] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe3]
7f:0c.4 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe4] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe4]
7f:0c.5 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe5] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe5]
7f:0c.6 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe6] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe6]
7f:0c.7 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe7] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe7]
7f:0f.0 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff8] (rev 01)
7f:0f.1 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff9] (rev 01)
7f:0f.2 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffa] (rev 01)
7f:0f.3 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffb] (rev 01)
7f:0f.4 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffc] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
7f:0f.5 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffd] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
7f:0f.6 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffe] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
7f:10.0 System peripheral [0880]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d]
7f:10.1 Performance counters [1101]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34]
7f:10.5 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e]
7f:10.6 Performance counters [1101]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d]
7f:10.7 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f]
7f:12.0 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0]
7f:12.1 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 0 [8086:2f30] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2f30]
7f:12.4 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 1 [8086:2f60] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f60]
7f:12.5 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 1 [8086:2f38] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f38]
7f:13.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8]
7f:13.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71]
7f:13.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa]
7f:13.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab]
7f:13.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 0/1 Broadcast [8086:2fae] (rev 01)
7f:13.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2faf] (rev 01)
7f:14.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0]
7f:14.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1]
7f:14.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2]
7f:14.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3]
7f:14.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbc] (rev 01)
7f:14.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbd] (rev 01)
7f:14.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbe] (rev 01)
7f:14.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbf] (rev 01)
7f:16.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68]
7f:16.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79]
7f:16.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a]
7f:16.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b]
7f:16.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 2/3 Broadcast [8086:2f6e] (rev 01)
7f:16.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2f6f] (rev 01)
7f:17.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0]
7f:17.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1]
7f:17.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2]
7f:17.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3]
7f:17.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb8] (rev 01)
7f:17.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb9] (rev 01)
7f:17.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fba] (rev 01)
7f:17.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fbb] (rev 01)
7f:1e.0 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f98] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f98]
7f:1e.1 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f99] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f99]
7f:1e.2 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9a] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9a]
7f:1e.3 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2fc0] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2fc0]
7f:1e.4 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9c] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9c]
7f:1f.0 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f88] (rev 01)
7f:1f.2 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f8a] (rev 01)
80:04.0 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 0 [8086:2f20] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.1 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 1 [8086:2f21] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.2 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 2 [8086:2f22] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.3 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 3 [8086:2f23] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.4 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 4 [8086:2f24] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.5 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 5 [8086:2f25] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.6 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 6 [8086:2f26] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.7 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 7 [8086:2f27] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:05.0 System peripheral [0880]: Intel Corporation Haswell-E Address Map, VTd_Misc, System Management [8086:2f28] (rev 01)
80:05.1 System peripheral [0880]: Intel Corporation Haswell-E Hot Plug [8086:2f29] (rev 01)
80:05.2 System peripheral [0880]: Intel Corporation Haswell-E RAS, Control Status and Global Errors [8086:2f2a] (rev 01)
80:05.4 PIC [0800]: Intel Corporation Haswell-E I/O Apic [8086:2f2c] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
ff:08.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f80] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f80]
ff:08.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 0 [8086:2f32] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f32]
ff:08.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f83] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f83]
ff:09.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f90] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f90]
ff:09.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 1 [8086:2f33] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f33]
ff:09.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f93] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f93]
ff:0b.0 System peripheral [0880]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81]
ff:0b.1 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36]
ff:0b.2 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37]
ff:0c.0 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe0] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe0]
ff:0c.1 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe1] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe1]
ff:0c.2 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe2] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe2]
ff:0c.3 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe3] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe3]
ff:0c.4 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe4] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe4]
ff:0c.5 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe5] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe5]
ff:0c.6 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe6] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe6]
ff:0c.7 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe7] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe7]
ff:0f.0 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff8] (rev 01)
ff:0f.1 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff9] (rev 01)
ff:0f.2 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffa] (rev 01)
ff:0f.3 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffb] (rev 01)
ff:0f.4 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffc] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
ff:0f.5 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffd] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
ff:0f.6 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffe] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
ff:10.0 System peripheral [0880]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d]
ff:10.1 Performance counters [1101]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34]
ff:10.5 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e]
ff:10.6 Performance counters [1101]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d]
ff:10.7 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f]
ff:12.0 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0]
ff:12.1 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 0 [8086:2f30] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2f30]
ff:12.4 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 1 [8086:2f60] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f60]
ff:12.5 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 1 [8086:2f38] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f38]
ff:13.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8]
ff:13.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71]
ff:13.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa]
ff:13.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab]
ff:13.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 0/1 Broadcast [8086:2fae] (rev 01)
ff:13.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2faf] (rev 01)
ff:14.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0]
ff:14.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1]
ff:14.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2]
ff:14.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3]
ff:14.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbc] (rev 01)
ff:14.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbd] (rev 01)
ff:14.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbe] (rev 01)
ff:14.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbf] (rev 01)
ff:16.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68]
ff:16.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79]
ff:16.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a]
ff:16.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b]
ff:16.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 2/3 Broadcast [8086:2f6e] (rev 01)
ff:16.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2f6f] (rev 01)
ff:17.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0]
ff:17.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1]
ff:17.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2]
ff:17.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3]
ff:17.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb8] (rev 01)
ff:17.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb9] (rev 01)
ff:17.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fba] (rev 01)
ff:17.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fbb] (rev 01)
ff:1e.0 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f98] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f98]
ff:1e.1 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f99] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f99]
ff:1e.2 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9a] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9a]
ff:1e.3 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2fc0] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2fc0]
ff:1e.4 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9c] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9c]
ff:1f.0 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f88] (rev 01)
ff:1f.2 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f8a] (rev 01)
rt@rt:~$
rt@rt:~$ sudo lshw -numeric -class video
*-display UNCLAIMED
description: VGA compatible controller
product: NVIDIA Corporation [10DE:13C2]
vendor: NVIDIA Corporation [10DE]
physical id: 0
bus info: pci@0000:03:00.0
version: a1
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress vga_controller cap_list
configuration: latency=0
resources: memory:ef000000-efffffff memory:c0000000-cfffffff memory:d0000000-d1ffffff ioport:6000(size=128) memory:f0000000-f007ffff
rt@rt:~$ sudo ubuntu-drivers devices
rt@rt:~$
rt@rt:~$ uname -r
3.16.0-30-generic
rt@rt:~$
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ahci
00:14.0 USB controller [0c03]: Intel Corporation Wellsburg USB xHCI Host Controller [8086:8d31] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: xhci_hcd
00:1a.0 USB controller [0c03]: Intel Corporation Wellsburg USB Enhanced Host Controller #2 [8086:8d2d] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ehci-pci
00:1b.0 Audio device [0403]: Intel Corporation Wellsburg HD Audio Controller [8086:8d20] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: snd_hda_intel
00:1c.0 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #1 [8086:8d10] (rev d5)
Kernel driver in use: pcieport
00:1c.2 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #3 [8086:8d14] (rev d5)
Kernel driver in use: pcieport
00:1c.3 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #4 [8086:8d16] (rev d5)
Kernel driver in use: pcieport
00:1c.4 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #5 [8086:8d18] (rev d5)
Kernel driver in use: pcieport
00:1d.0 USB controller [0c03]: Intel Corporation Wellsburg USB Enhanced Host Controller #1 [8086:8d26] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ehci-pci
00:1f.0 ISA bridge [0601]: Intel Corporation Wellsburg LPC Controller [8086:8d44] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: lpc_ich
00:1f.2 SATA controller [0106]: Intel Corporation Wellsburg 6-Port SATA Controller [AHCI mode] [8086:8d02] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
Kernel driver in use: ahci
00:1f.3 SMBus [0c05]: Intel Corporation Wellsburg SMBus Controller [8086:8d22] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0836]
03:00.0 VGA compatible controller [0300]: NVIDIA Corporation Device [10de:13c2] (rev a1)
Subsystem: NVIDIA Corporation Device [10de:1131]
03:00.1 Audio device [0403]: NVIDIA Corporation Device [10de:0fbb] (rev a1)
Subsystem: NVIDIA Corporation Device [10de:1131]
Kernel driver in use: snd_hda_intel
05:00.0 Ethernet controller [0200]: Intel Corporation I210 Gigabit Network Connection [8086:1533] (rev 03)
Subsystem: Super Micro Computer Inc Device [15d9:1533]
Kernel driver in use: igb
06:00.0 Ethernet controller [0200]: Intel Corporation I210 Gigabit Network Connection [8086:1533] (rev 03)
Subsystem: Super Micro Computer Inc Device [15d9:1533]
Kernel driver in use: igb
7f:08.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f80] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f80]
7f:08.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 0 [8086:2f32] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f32]
7f:08.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f83] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f83]
7f:09.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f90] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f90]
7f:09.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 1 [8086:2f33] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f33]
7f:09.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f93] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f93]
7f:0b.0 System peripheral [0880]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81]
7f:0b.1 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36]
7f:0b.2 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37]
7f:0c.0 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe0] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe0]
7f:0c.1 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe1] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe1]
7f:0c.2 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe2] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe2]
7f:0c.3 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe3] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe3]
7f:0c.4 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe4] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe4]
7f:0c.5 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe5] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe5]
7f:0c.6 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe6] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe6]
7f:0c.7 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe7] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe7]
7f:0f.0 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff8] (rev 01)
7f:0f.1 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff9] (rev 01)
7f:0f.2 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffa] (rev 01)
7f:0f.3 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffb] (rev 01)
7f:0f.4 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffc] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
7f:0f.5 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffd] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
7f:0f.6 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffe] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
7f:10.0 System peripheral [0880]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d]
7f:10.1 Performance counters [1101]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34]
7f:10.5 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e]
7f:10.6 Performance counters [1101]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d]
7f:10.7 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f]
7f:12.0 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0]
7f:12.1 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 0 [8086:2f30] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2f30]
7f:12.4 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 1 [8086:2f60] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f60]
7f:12.5 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 1 [8086:2f38] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f38]
7f:13.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8]
7f:13.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71]
7f:13.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa]
7f:13.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab]
7f:13.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 0/1 Broadcast [8086:2fae] (rev 01)
7f:13.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2faf] (rev 01)
7f:14.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0]
7f:14.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1]
7f:14.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2]
7f:14.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3]
7f:14.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbc] (rev 01)
7f:14.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbd] (rev 01)
7f:14.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbe] (rev 01)
7f:14.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbf] (rev 01)
7f:16.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68]
7f:16.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79]
7f:16.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a]
7f:16.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b]
7f:16.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 2/3 Broadcast [8086:2f6e] (rev 01)
7f:16.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2f6f] (rev 01)
7f:17.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0]
7f:17.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1]
7f:17.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2]
7f:17.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3]
7f:17.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb8] (rev 01)
7f:17.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb9] (rev 01)
7f:17.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fba] (rev 01)
7f:17.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fbb] (rev 01)
7f:1e.0 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f98] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f98]
7f:1e.1 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f99] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f99]
7f:1e.2 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9a] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9a]
7f:1e.3 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2fc0] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2fc0]
7f:1e.4 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9c] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9c]
7f:1f.0 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f88] (rev 01)
7f:1f.2 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f8a] (rev 01)
80:04.0 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 0 [8086:2f20] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.1 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 1 [8086:2f21] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.2 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 2 [8086:2f22] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.3 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 3 [8086:2f23] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.4 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 4 [8086:2f24] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.5 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 5 [8086:2f25] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.6 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 6 [8086:2f26] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:04.7 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 7 [8086:2f27] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: ioatdma
80:05.0 System peripheral [0880]: Intel Corporation Haswell-E Address Map, VTd_Misc, System Management [8086:2f28] (rev 01)
80:05.1 System peripheral [0880]: Intel Corporation Haswell-E Hot Plug [8086:2f29] (rev 01)
80:05.2 System peripheral [0880]: Intel Corporation Haswell-E RAS, Control Status and Global Errors [8086:2f2a] (rev 01)
80:05.4 PIC [0800]: Intel Corporation Haswell-E I/O Apic [8086:2f2c] (rev 01)
Subsystem: Intel Corporation Device [8086:0000]
ff:08.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f80] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f80]
ff:08.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 0 [8086:2f32] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f32]
ff:08.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f83] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 0 [8086:2f83]
ff:09.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f90] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f90]
ff:09.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 1 [8086:2f33] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f33]
ff:09.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 1 [8086:2f93] (rev 01)
Subsystem: Intel Corporation Haswell-E QPI Link 1 [8086:2f93]
ff:0b.0 System peripheral [0880]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81]
ff:0b.1 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36]
ff:0b.2 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37] (rev 01)
Subsystem: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37]
ff:0c.0 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe0] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe0]
ff:0c.1 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe1] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe1]
ff:0c.2 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe2] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe2]
ff:0c.3 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe3] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe3]
ff:0c.4 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe4] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe4]
ff:0c.5 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe5] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe5]
ff:0c.6 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe6] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe6]
ff:0c.7 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe7] (rev 01)
Subsystem: Intel Corporation Haswell-E Unicast Registers [8086:2fe7]
ff:0f.0 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff8] (rev 01)
ff:0f.1 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff9] (rev 01)
ff:0f.2 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffa] (rev 01)
ff:0f.3 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ffb] (rev 01)
ff:0f.4 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffc] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
ff:0f.5 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffd] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
ff:0f.6 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffe] (rev 01)
Subsystem: Intel Corporation Device [8086:2fe0]
ff:10.0 System peripheral [0880]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d]
ff:10.1 Performance counters [1101]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34] (rev 01)
Subsystem: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34]
ff:10.5 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e]
ff:10.6 Performance counters [1101]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d]
ff:10.7 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f] (rev 01)
Subsystem: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f]
ff:12.0 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0]
ff:12.1 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 0 [8086:2f30] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 0 [8086:2f30]
ff:12.4 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 1 [8086:2f60] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f60]
ff:12.5 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 1 [8086:2f38] (rev 01)
Subsystem: Intel Corporation Haswell-E Home Agent 1 [8086:2f38]
ff:13.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8]
ff:13.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71]
ff:13.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa]
ff:13.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab]
ff:13.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 0/1 Broadcast [8086:2fae] (rev 01)
ff:13.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2faf] (rev 01)
ff:14.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0]
ff:14.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1]
ff:14.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2]
ff:14.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3]
ff:14.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbc] (rev 01)
ff:14.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbd] (rev 01)
ff:14.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbe] (rev 01)
ff:14.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbf] (rev 01)
ff:16.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68]
ff:16.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f79]
ff:16.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6a]
ff:16.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel Target Address Decoder [8086:2f6b]
ff:16.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 2/3 Broadcast [8086:2f6e] (rev 01)
ff:16.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2f6f] (rev 01)
ff:17.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0]
ff:17.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 Thermal Control [8086:2fd1]
ff:17.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 ERROR Registers [8086:2fd2]
ff:17.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3] (rev 01)
Subsystem: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 1 ERROR Registers [8086:2fd3]
ff:17.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb8] (rev 01)
ff:17.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb9] (rev 01)
ff:17.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fba] (rev 01)
ff:17.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fbb] (rev 01)
ff:1e.0 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f98] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f98]
ff:1e.1 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f99] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f99]
ff:1e.2 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9a] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9a]
ff:1e.3 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2fc0] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2fc0]
ff:1e.4 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9c] (rev 01)
Subsystem: Intel Corporation Haswell-E Power Control Unit [8086:2f9c]
ff:1f.0 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f88] (rev 01)
ff:1f.2 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f8a] (rev 01)
rt@rt:~$
rt@rt:~$ sudo lshw -numeric -class video
*-display UNCLAIMED
description: VGA compatible controller
product: NVIDIA Corporation [10DE:13C2]
vendor: NVIDIA Corporation [10DE]
physical id: 0
bus info: pci@0000:03:00.0
version: a1
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress vga_controller cap_list
configuration: latency=0
resources: memory:ef000000-efffffff memory:c0000000-cfffffff memory:d0000000-d1ffffff ioport:6000(size=128) memory:f0000000-f007ffff
rt@rt:~$ sudo ubuntu-drivers devices
rt@rt:~$
-
- 帖子: 166
- 注册时间: 2015-01-07 16:41
- 系统: ubuntu 14.04
Re: gtx970驱动安装
信息我已贴出,如果还需要什么信息请及时告之。谢谢各位先。
-
- 论坛版主
- 帖子: 18279
- 注册时间: 2009-08-04 16:33
Re: gtx970驱动安装
1. 沒有偵測到 Intel 顯卡 ?sudo lspci -knn
2. Intel 顯卡沒有被驅動sudo lshw -numeric -class video
3. http://pciids.sourceforge.net/v2.2/pci.idssudo lspci -knn
03:00.0 VGA compatible controller [0300]: NVIDIA Corporation Device [10de:13c2] (rev a1)
Subsystem: NVIDIA Corporation Device [10de:1131]
10de NVIDIA Corporation
13c2 GM204 [GeForce GTX 970]
4. Nvidia 顯卡 GeForce GTX 970 沒有被驅動sudo lshw -numeric -class video
*-display UNCLAIMED
product: NVIDIA Corporation [10DE:13C2]
configuration: latency=0
5. 請查一下 你的電腦使用手冊
看看 Intel 顯卡 品牌與型號
6. 補充
第一次 看到
sudo lspci -knn
顯示內容這麼豐富 !
-
- 帖子: 166
- 注册时间: 2015-01-07 16:41
- 系统: ubuntu 14.04
Re: gtx970驱动安装
回复8楼,我的机器是双CPU工作站,独立显卡,没有intel显卡。不知道有没有解决的办法。
-
- 帖子: 166
- 注册时间: 2015-01-07 16:41
- 系统: ubuntu 14.04
Re: gtx970驱动安装
我现在只知道在CTRL+ATL+F1模式下安装NV显卡驱动。不知道有没有别的办法可以安装。软件中心的NV显卡驱动是不支持GTX970的。如果有办法能让软件中心的NV显卡驱动能增加支持GTX970的驱动就好了。不知道有没有办法?
-
- 论坛版主
- 帖子: 18279
- 注册时间: 2009-08-04 16:33
Re: gtx970驱动安装
你的意思是 沒有安裝 desktop 只是 Server ?我现在只知道在CTRL+ATL+F1模式下安装NV显卡驱动。
-
- 帖子: 166
- 注册时间: 2015-01-07 16:41
- 系统: ubuntu 14.04
Re: gtx970驱动安装
回11楼。装得是desktop版,只不过可以通过CTRL+ALT+F1进入全屏的命令行状态。你难道没用过CTRL+ALT+F1功能?
-
- 论坛版主
- 帖子: 18279
- 注册时间: 2009-08-04 16:33
Re: gtx970驱动安装
從桌面版終端機指令装得是desktop版
安裝 ubuntu 套件庫 以及 ppa 提供的閉源驅動
https://help.ubuntu.com/community/Binar ... wto/Nvidia
從桌面版終端機指令
安裝 nVidia 官網 下載的閉源驅動
https://help.ubuntu.com/community/NvidiaManual
-
- 帖子: 166
- 注册时间: 2015-01-07 16:41
- 系统: ubuntu 14.04
-
- 帖子: 166
- 注册时间: 2015-01-07 16:41
- 系统: ubuntu 14.04
Re: gtx970驱动安装
很复杂的样子,英文不好,看不懂啊。poloshiao 写了:從桌面版終端機指令装得是desktop版
安裝 ubuntu 套件庫 以及 ppa 提供的閉源驅動
https://help.ubuntu.com/community/Binar ... wto/Nvidia
從桌面版終端機指令
安裝 nVidia 官網 下載的閉源驅動
https://help.ubuntu.com/community/NvidiaManual
